A useful event floor plan shows the room, furniture in use, working areas, and the routes connecting them. For a chair purchase, it also identifies the exact table sizes, tested chair positions, and largest simultaneous requirement. Create that evidence before requesting a quantity-based quote. A furnished drawing without measurements can hide the very fit or handling constraint that determines which chair the venue should buy.

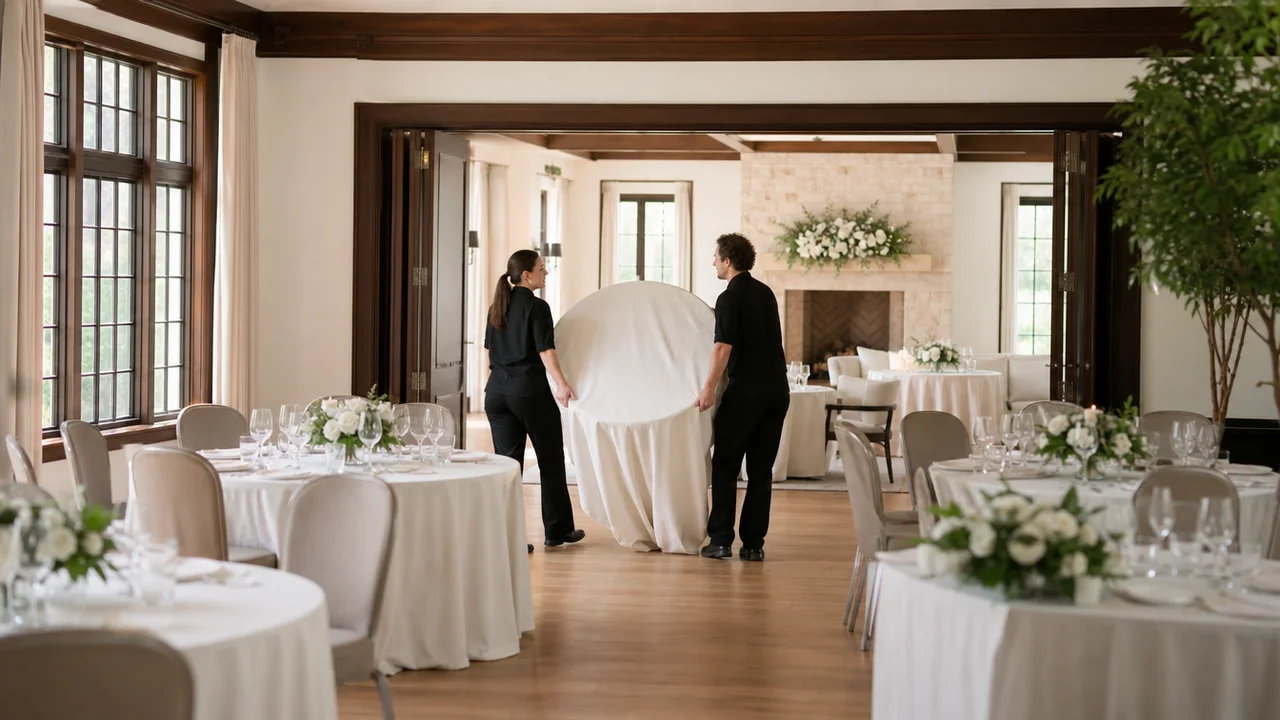

Include the furniture’s route into the room alongside its final position. The New York delivery-access brief carries that requirement into the chair purchase, and the state buying guides offer other venue planning examples.
Survey the room from a fixed reference
Measure the usable room outline and locate doors, columns, built-in equipment, level changes, and other fixed features. Establish a clear origin, such as a named corner, so furniture locations can be reproduced on the floor.
Record door locations and their working space as directed by the venue's reviewer. Include the service and storage entrances, not just the guest entrance. Confirm measurements against an available building drawing where possible, and label any discrepancy that needs resolution.
Use one unit system and show the drawing scale. If you are using digital planning software, confirm that a known wall dimension produces the expected distance on the plan before adding furniture.
Build a furniture schedule before placing shapes
Give each furniture type an identifier tied to an actual product or a clearly labeled assumption. The drawing and quantity list should reference the same identifiers.
| Field | Example of what belongs in it |
|---|---|
| Table identifier | R60, measured 60-inch round |
| Table quantity | Count actually shown on this plan |
| Chair identifier | Exact shortlisted model and configuration |
| Places per table | Result of the sample setting trial |
| Occupied projection | Measured table-edge-to-chair-back distance |
| Support information | Underside photograph or drawing reference |
| Status | Measured, supplier-confirmed, or awaiting verification |
Keep the distinction between a guest place and a venue chair. If a guest remains in their own chair, the plan still needs a dining position and appropriate approach. Coordinate the arrangement using the accessibility guide.
Place the functions that constrain seating
Draw the stage, dance floor, bar, buffet, stations, and other event functions with their active working areas. Include stairs, open equipment, operators, and expected queues where relevant to the plan.
Trace the intended guest and service journeys. A straight line between entrance and dining area is insufficient if an actual person must turn around a column or pass a working station. Have the venue team define the applicable access and egress requirements before filling the remaining space with chairs.

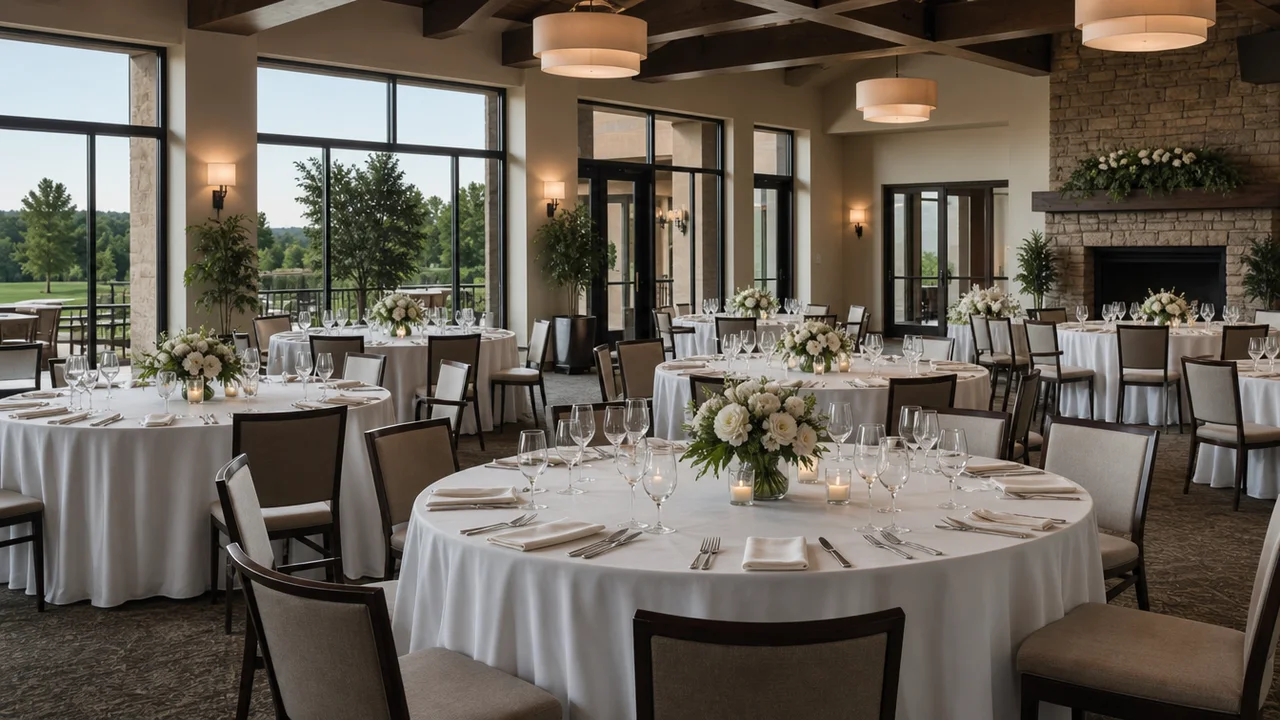

Choose the setup style that fits the event's activity. Dinner, classroom, and theater arrangements should each receive their own drawing when the room changes during the day.
Test furniture groups at full size
Mock up a representative table group and the most constrained pair of neighboring groups. Include the real setting and occupied chair positions. Measure the gap that remains and observe guests standing or staff passing during service.
Use the banquet room planner to compare positions, but replace its illustrative assumptions with your evidence. Its suggested chair counts and 12-inch allowance beyond tabletop edges are not comfort, accessibility, or occupancy approvals.
Label the measurement endpoints consistently with the room-clearance guide. A gap between tables cannot be substituted for a clear gap between chair backs. Keep unresolved dimensions visibly marked until the supplier or sample trial confirms them.
Reconcile the drawing with the event schedule
Count every table and deployed chair from the final arrangement. Check that the guest assignments fit those positions and that service-only tables have not accidentally added dining chairs. The capacity guide provides the corresponding arithmetic.
Next, draw the time sequence. If the same chairs move from a ceremony to dinner, identify when they are released, who moves them, and when the next room must be ready. Include inspection and any required cleaning. If the times overlap, count both deployments rather than assuming the fleet can be in two places.
Add a location for unused and removed chairs. Storage on event day is part of the layout; it should not appear later as a stack blocking a route or station.
Issue a plan that procurement and staff can share
Give the accepted plan a revision date and descriptive name, such as the event type and table arrangement. Retain its furniture schedule, sample photographs, and the reviewer-defined setup criteria together. When a table moves or a chair model changes, update both the drawing and the quantities.
Select chair candidates against this package. Send a quote request with the plan, model shortlist, table measurements, peak simultaneous deployment, serviceable stock, reserve decision, storage route, delivery location, and intended use date.
Ask the supplier to confirm missing dimensions and handling requirements. The venue can then compare quotations against the same reviewed arrangement, while setup staff receive a plan they can reproduce instead of a concept image they must interpret.
Attach an approval register to the drawing
A furniture-ready plan and an approved event plan are separate records. Give the project owner a short register showing who reviews the layout, what must be submitted, when it is due, which drawing revision was approved and where the approval is kept. Add the person responsible for resubmission if the setup changes.
Check deadlines with the actual venue and authority. Portland’s published assembly-event requirements call for a scaled plan with the application at least 21 calendar days before the event and require the approved permit and plan to remain available at the event. Moscone Center’s exhibit requirements specify final floor-plan submission at least 60 days before the event. These are examples of different local and venue processes, not interchangeable rules. Portland assembly plans, Moscone exhibit requirements
For an illustrative wedding, the register might contain separate entries for the venue’s layout review, a required temporary-event permit and an outside supplier’s delivery plan. Record an entry as “not required” only after the responsible party confirms that conclusion; retain the confirmation with the drawing.
On setup day, compare the installed room against the approved revision before guests arrive. Check the furniture schedule, working service areas and routes shown on that drawing. If a supplier substitutes a larger chair or the organizer moves the buffet, refer the change to the designated reviewer instead of assuming that unchanged guest numbers mean unchanged approval. Archive the final setup record for the next comparable event.
