Useful banquet room floor plan dimensions show what each measurement is taken between. A 60-inch gap between table edges is very different from 60 inches clear between occupied chair backs. Before purchasing a new chair fleet, measure its dining position, pullback movement, and service interactions. Then compare the resulting clear space with the requirements and working clearances established for your venue.
Name both ends of every dimension
Do not label a drawing simply “aisle: 4 ft.” Identify the boundaries and the condition measured: furniture parked, guests seated, or chairs moving. Use the same convention on the sample-test sheet and the floor plan.
| Measurement | Endpoints | Why it matters |
|---|---|---|

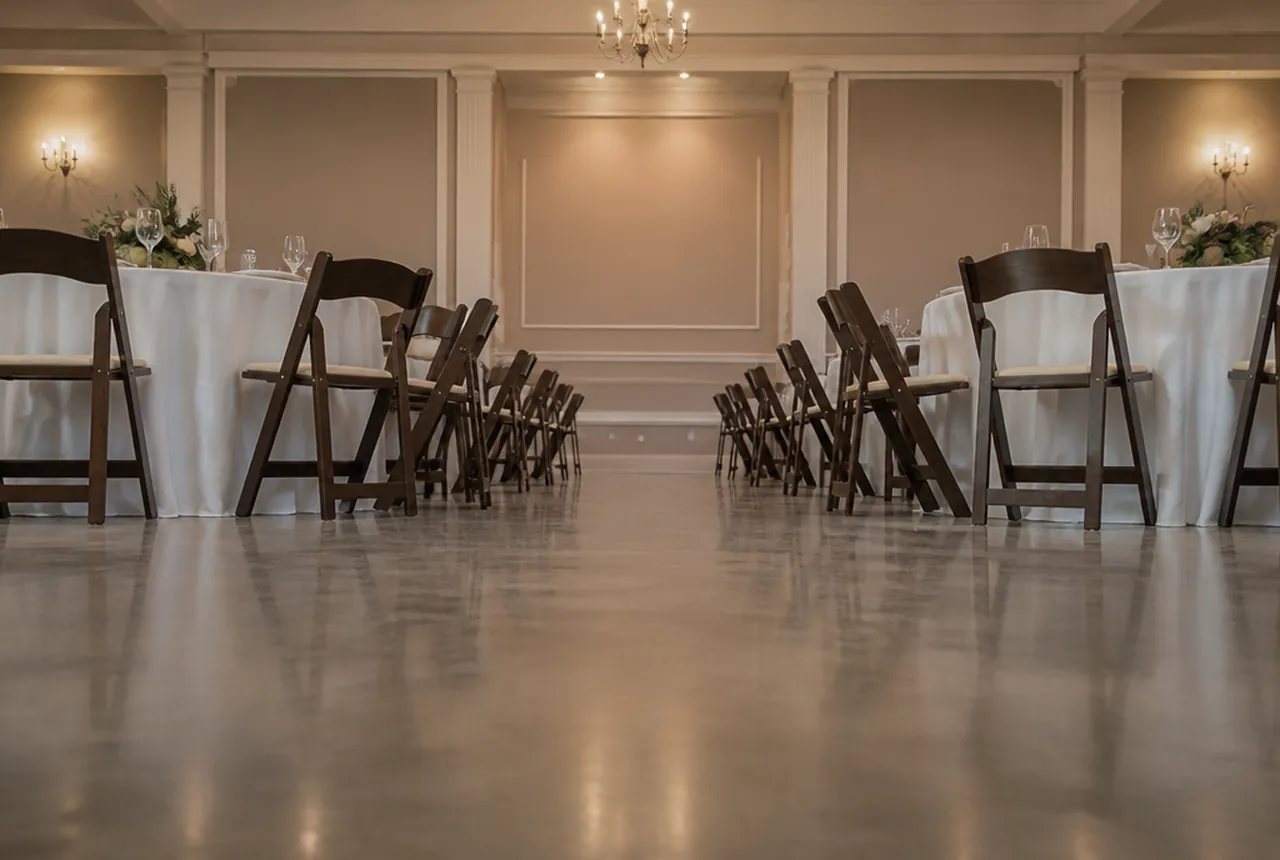

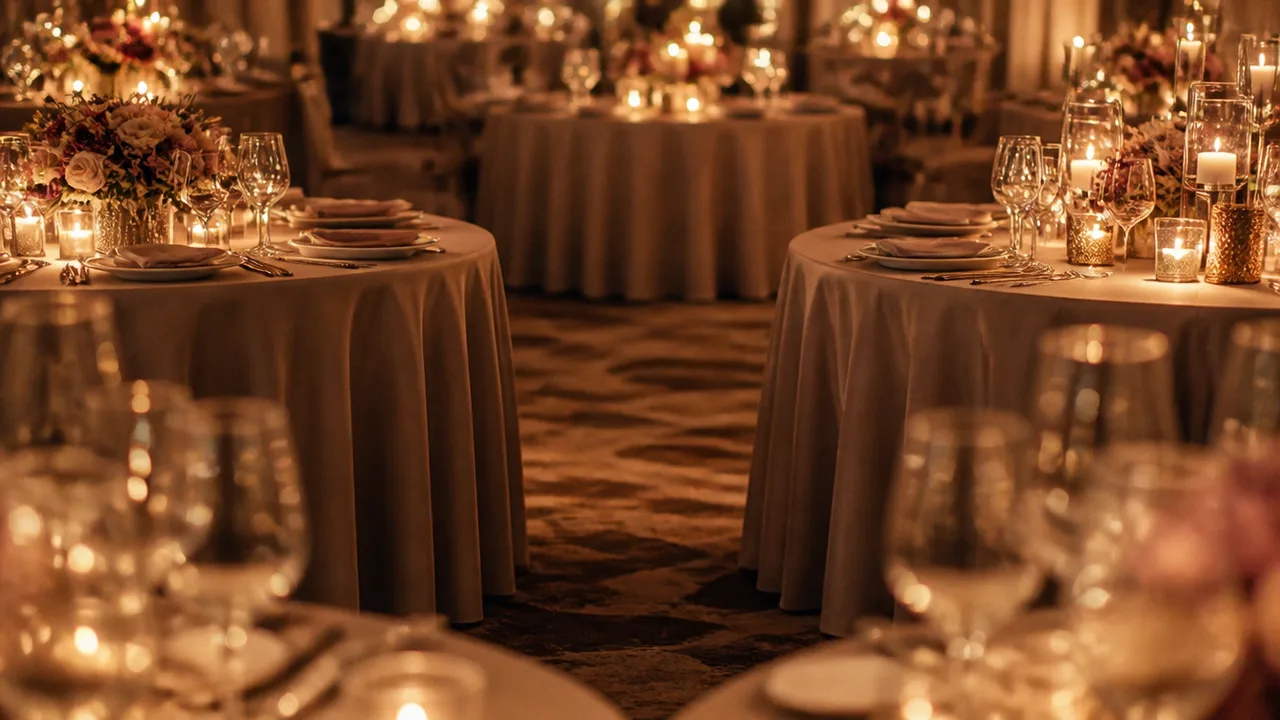

| Table-edge gap | Nearest edges of two tabletops | Easy to set out, but includes chair space |

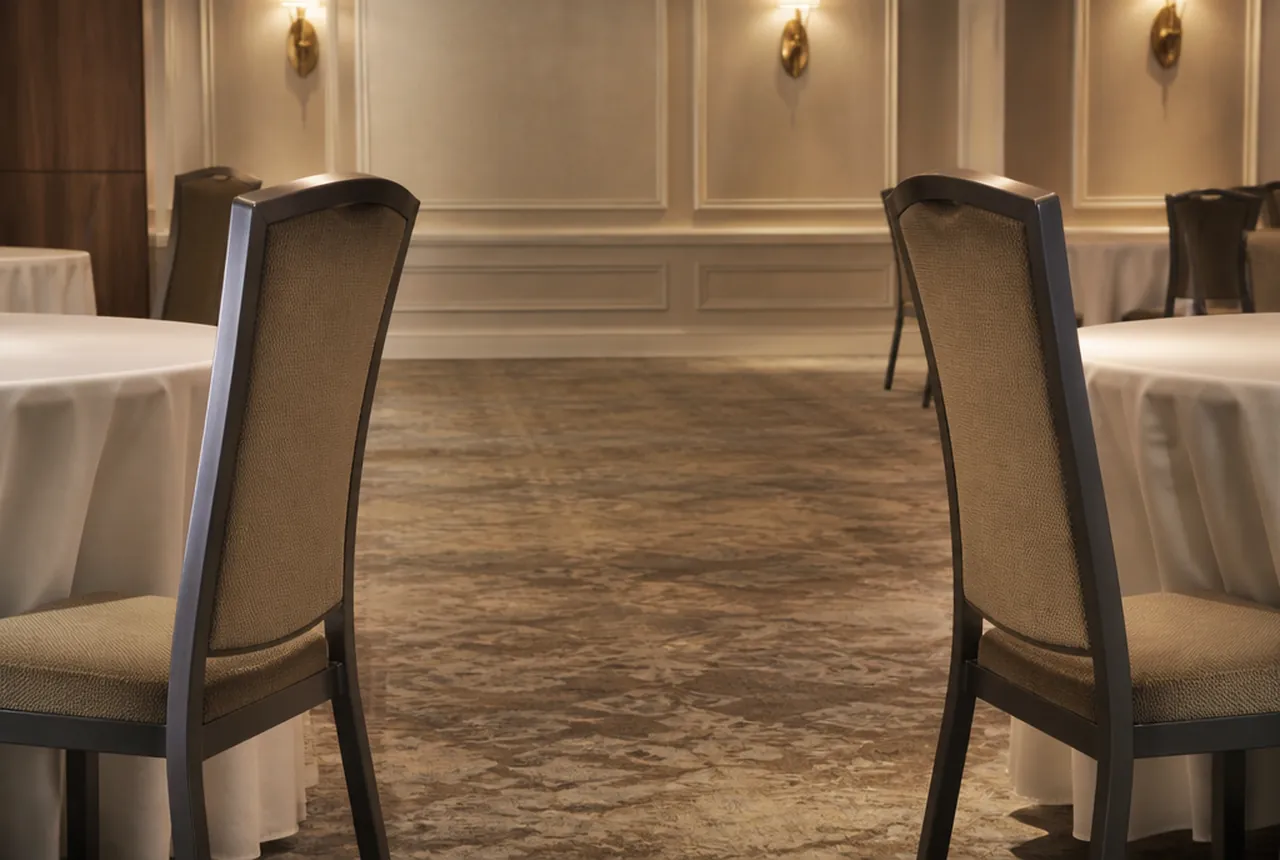

| Occupied clear gap | Nearest occupied chair backs | Shows remaining space during dining |

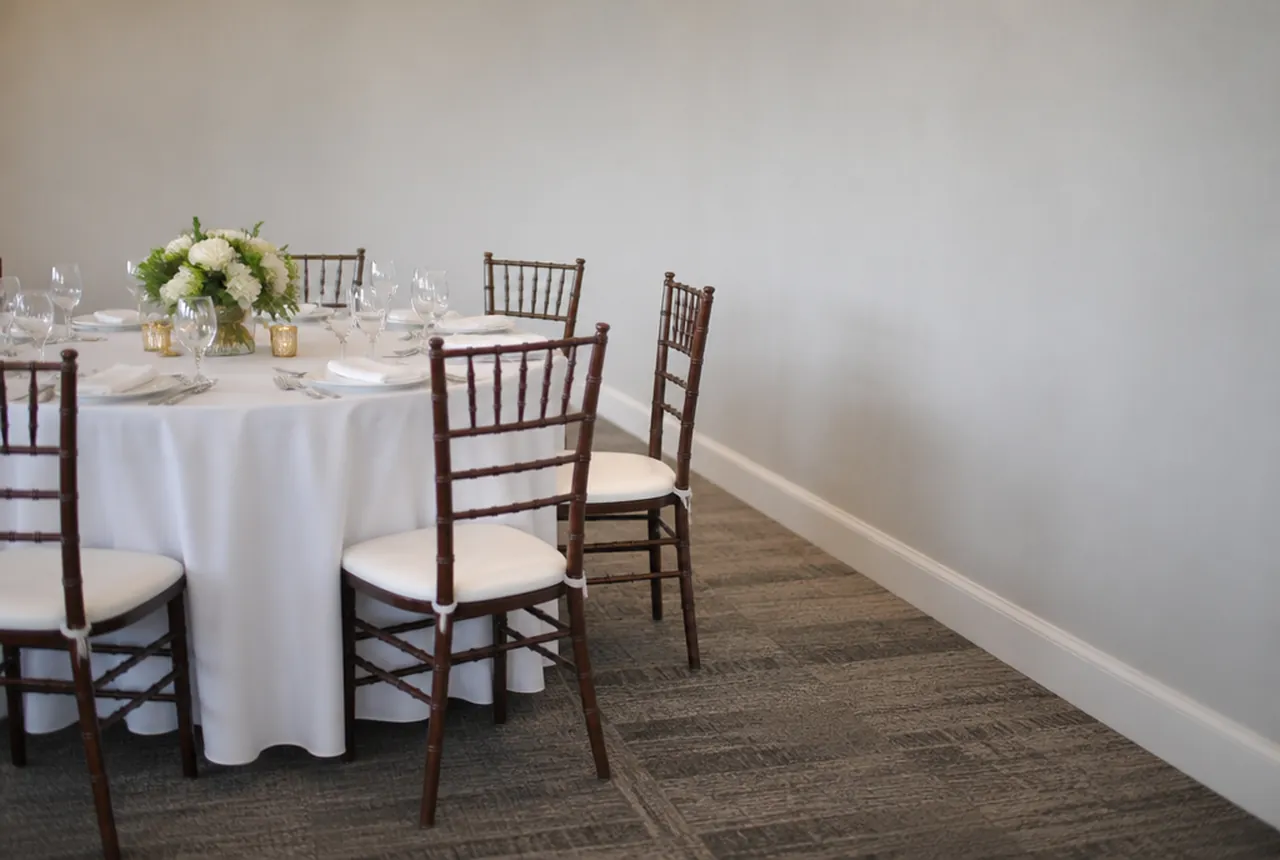

| Wall clearance | Occupied chair back to finished wall | Tests the outer table positions |

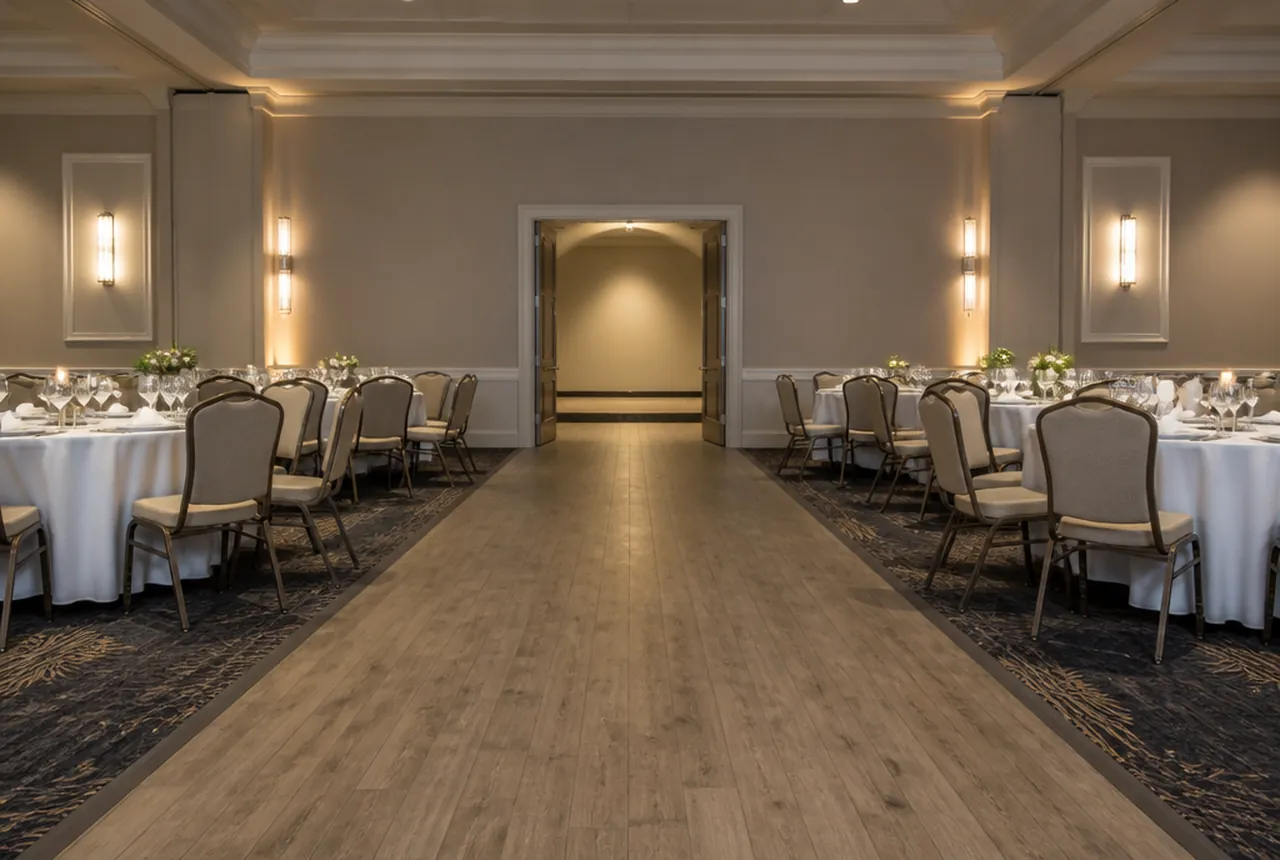

| Service working gap | Chair back to equipment in use | Reveals open-door or cart conflicts |

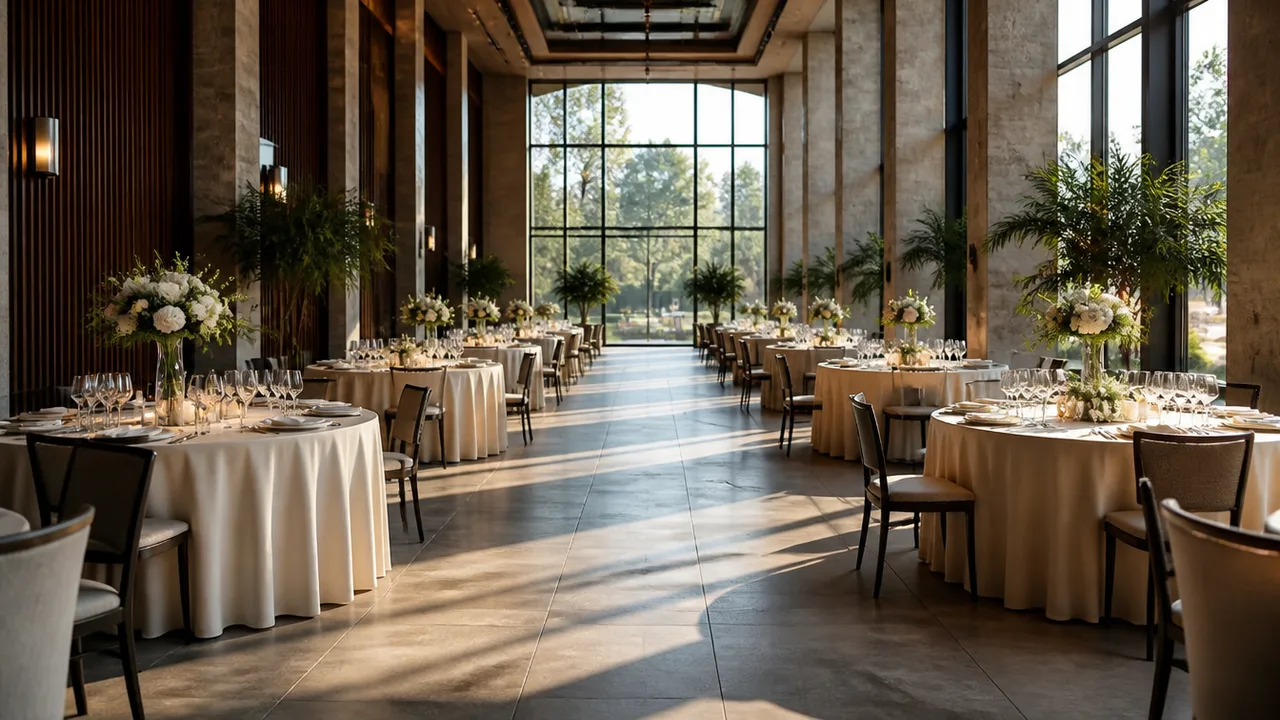

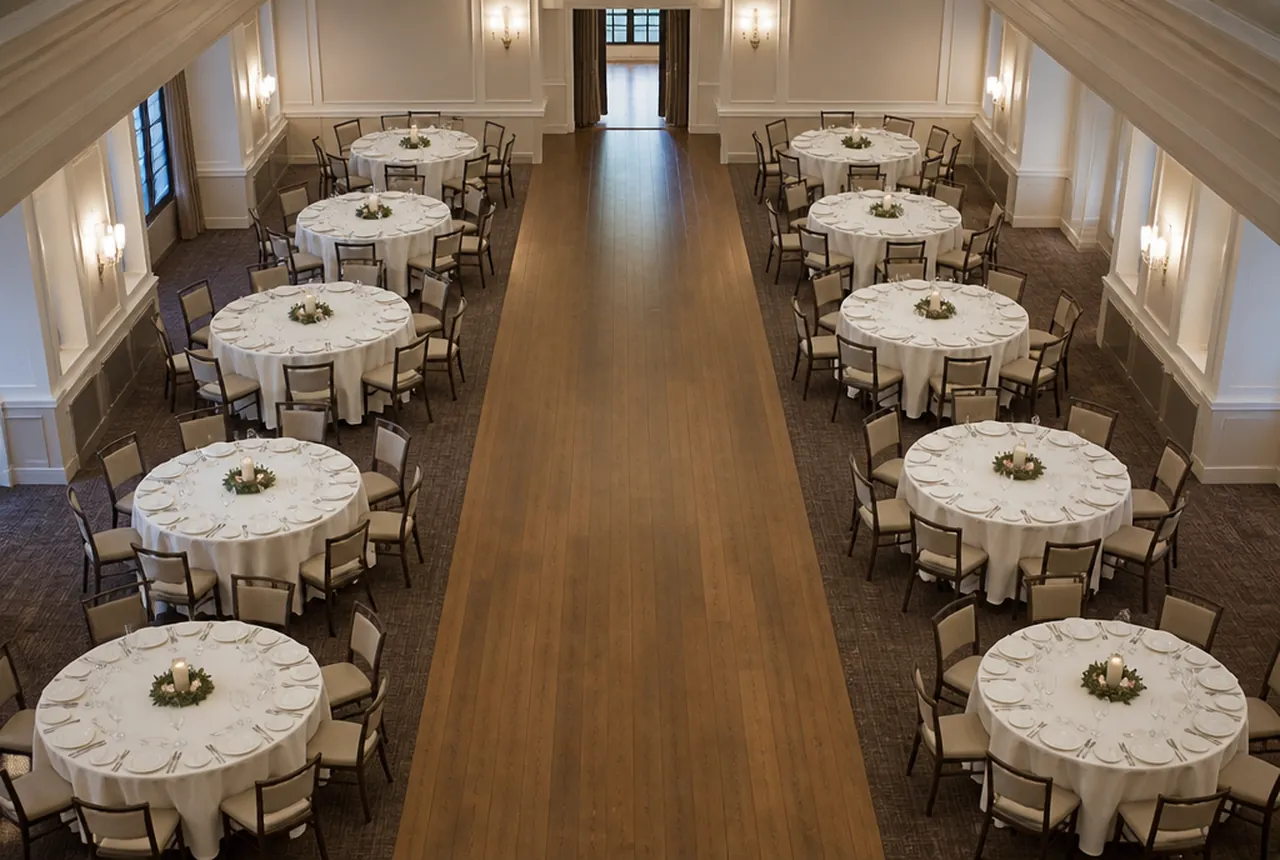

| Route clear width | Actual limiting obstructions | Supports the relevant route review |
| Row pitch | Same point on chairs in adjacent rows | Locates rows; does not equal clear passage |
Keep dimensions in one unit throughout the working drawing. Mark measured values separately from assumptions awaiting a sample.
Calculate the space that chairs consume
Consider a trial with 72 inches between two table edges. Suppose the occupied chair at each table projects 22 inches beyond its edge. The remaining gap is 72 − 22 − 22 = 28 inches.
Those are hypothetical sample measurements, not recommended clearances. They demonstrate why a generous-looking tabletop gap can become much smaller when the room is occupied. If a replacement chair adds 3 inches of projection on each side, the same tabletop placement leaves only 22 inches.
Measure both sides rather than assuming symmetry. Different guests and different table positions may change the occupied projection. Record the range observed and have the venue team decide which condition the plan must accommodate.
Separate pullback from a continuing route

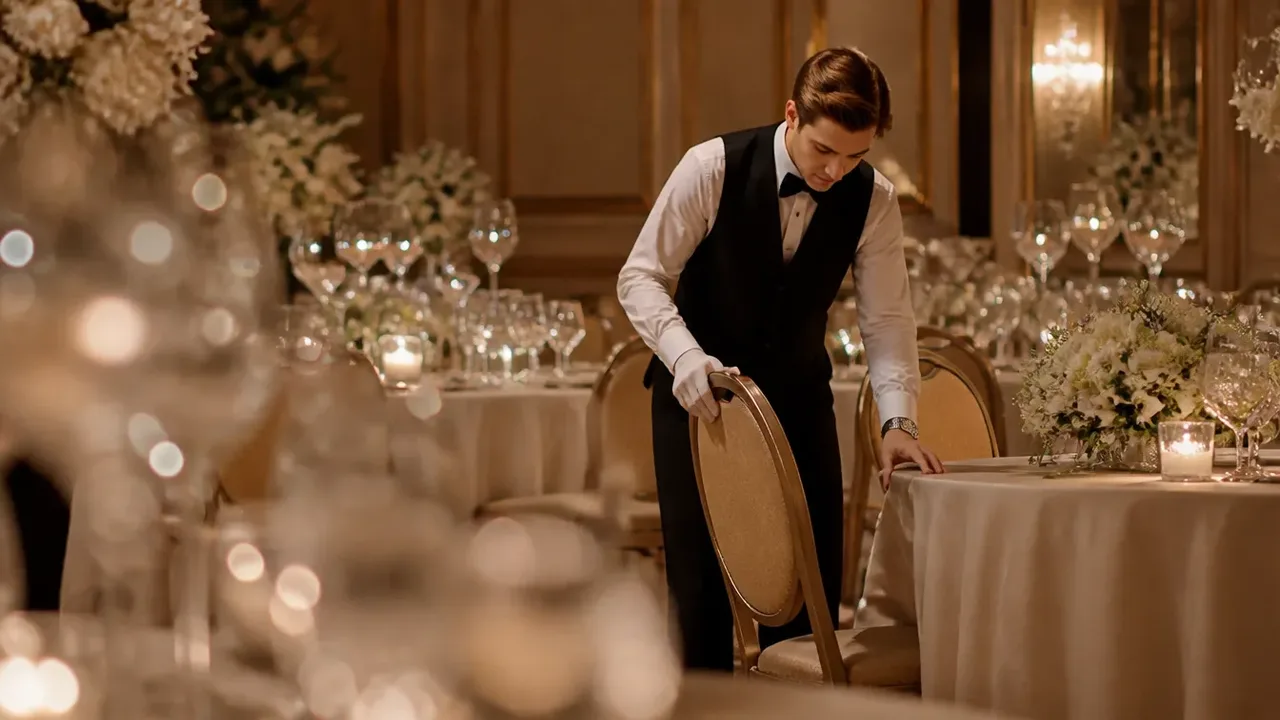

A chair needs space to move while a person sits down or stands. A route may need to remain usable at the same time. Allocating one strip of floor to both functions without reviewing their interaction can produce a plan that works only when everyone remains seated.

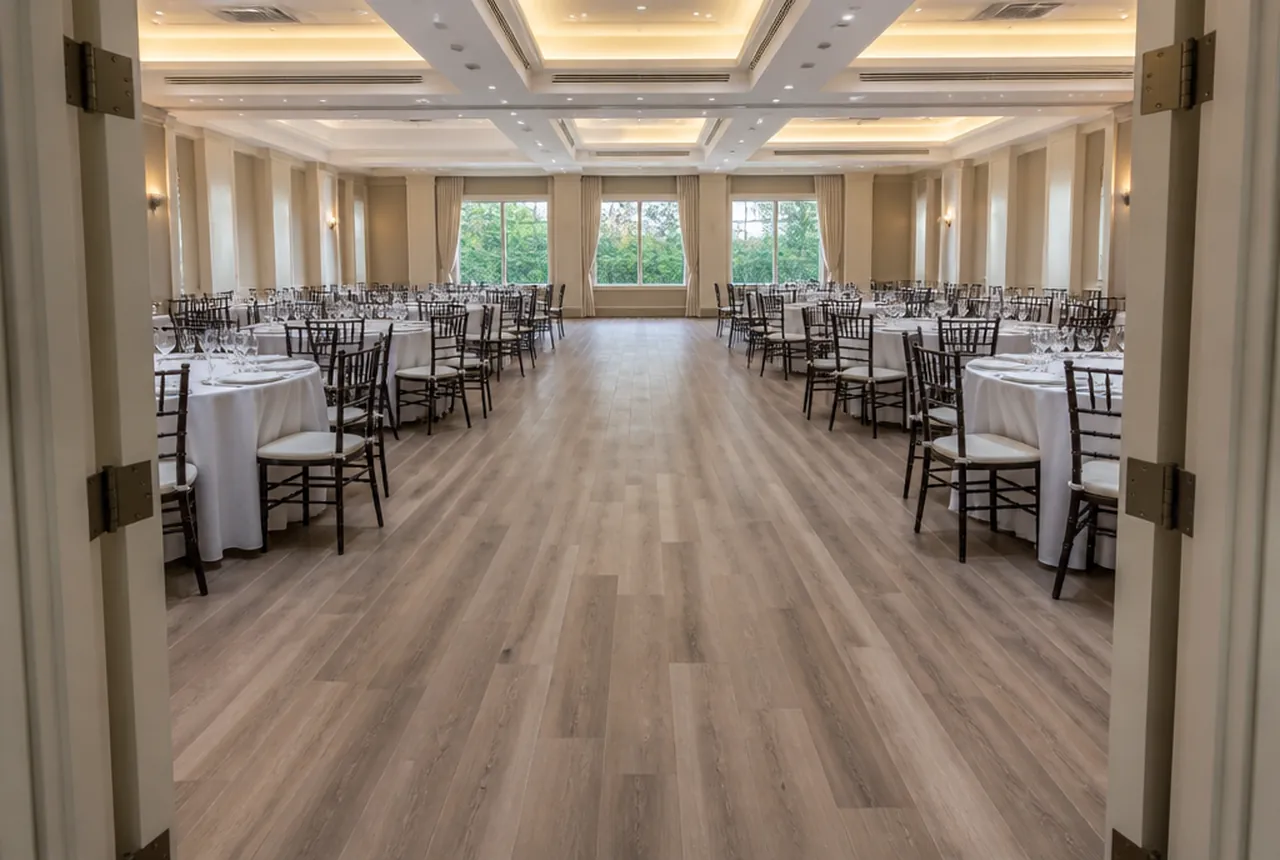

The ADA walking-surface provisions address width, turns, and passing as distinct conditions. A table-spacing preset does not check those requirements. ADA accessible-route provisions.

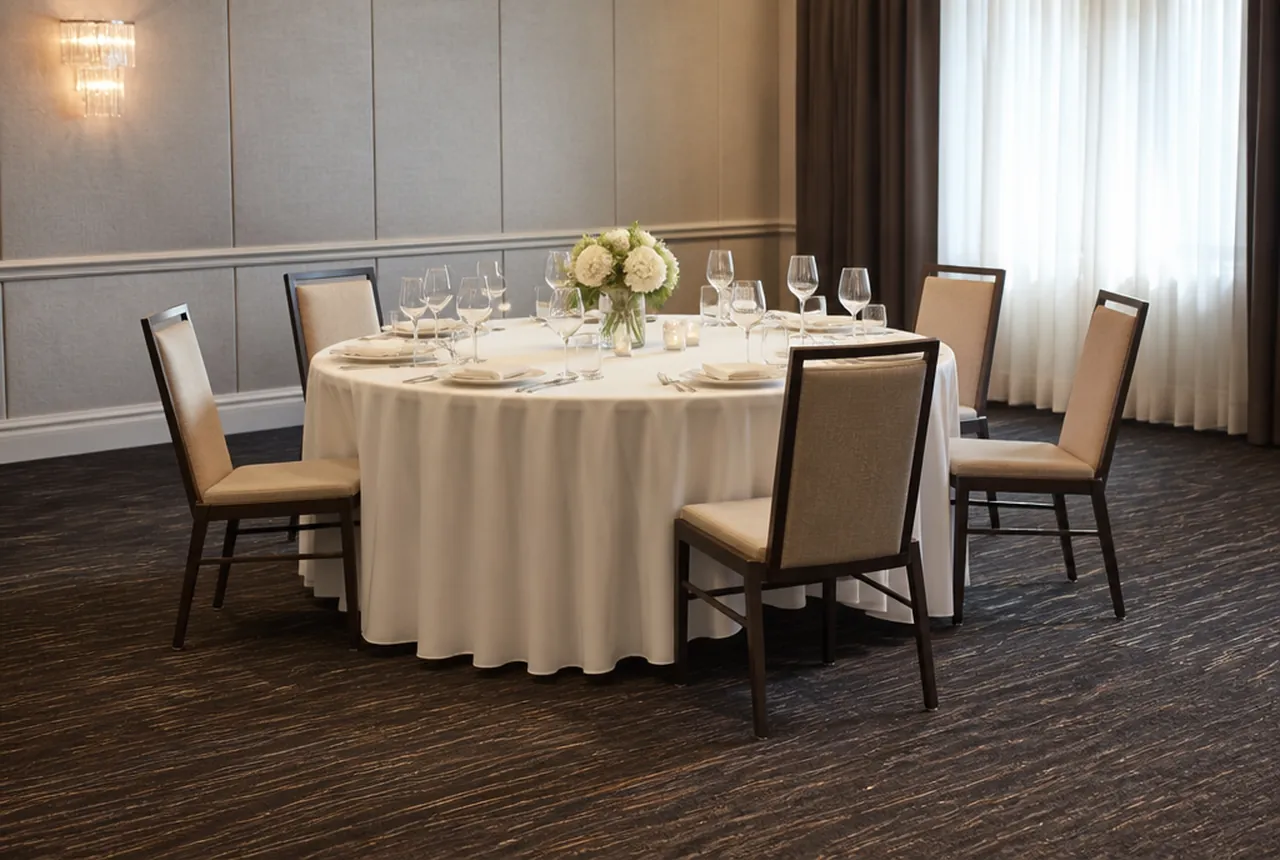

Use the accessible-seating guide to prepare questions for the venue's reviewer. Fire and egress requirements need their own confirmation. There is no single gap that automatically settles both access and maximum occupancy for every event.
Draw equipment in its working position

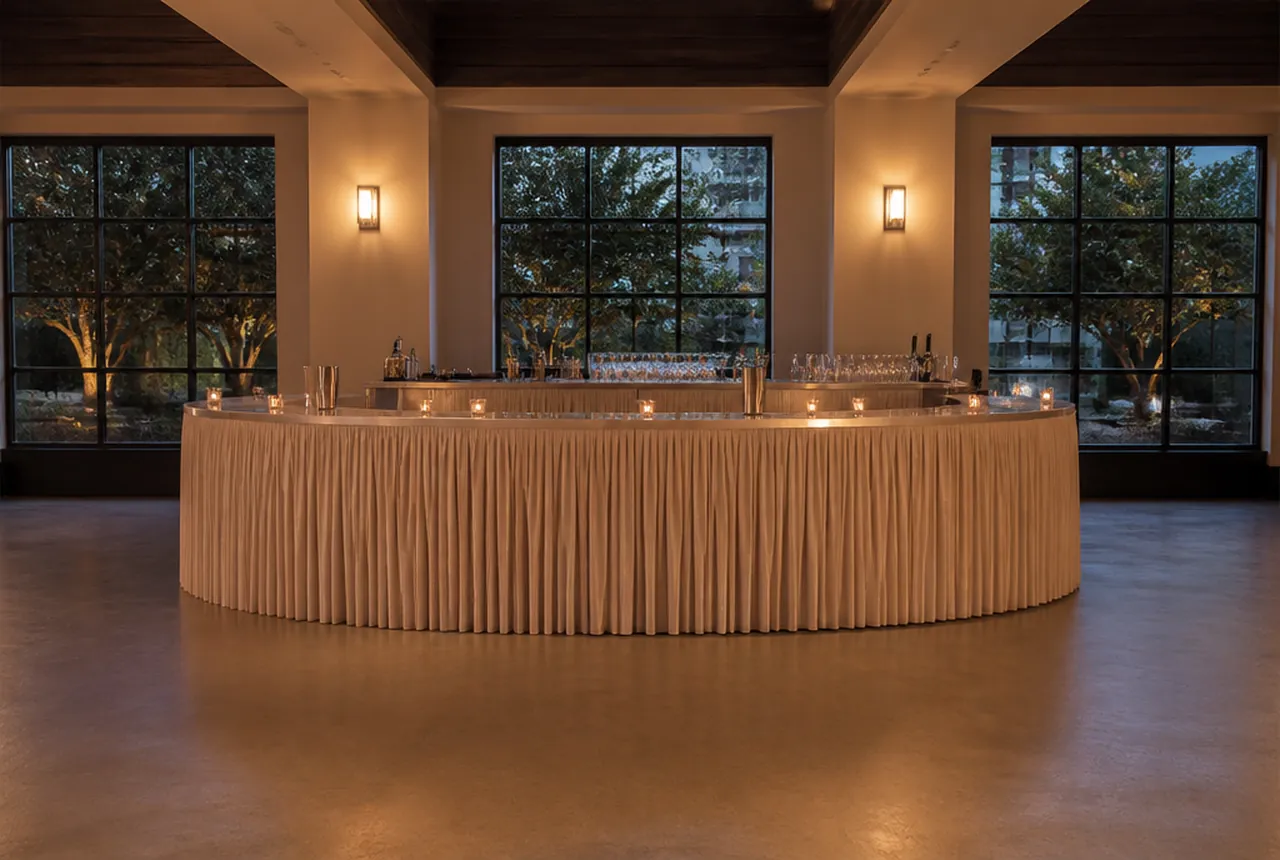

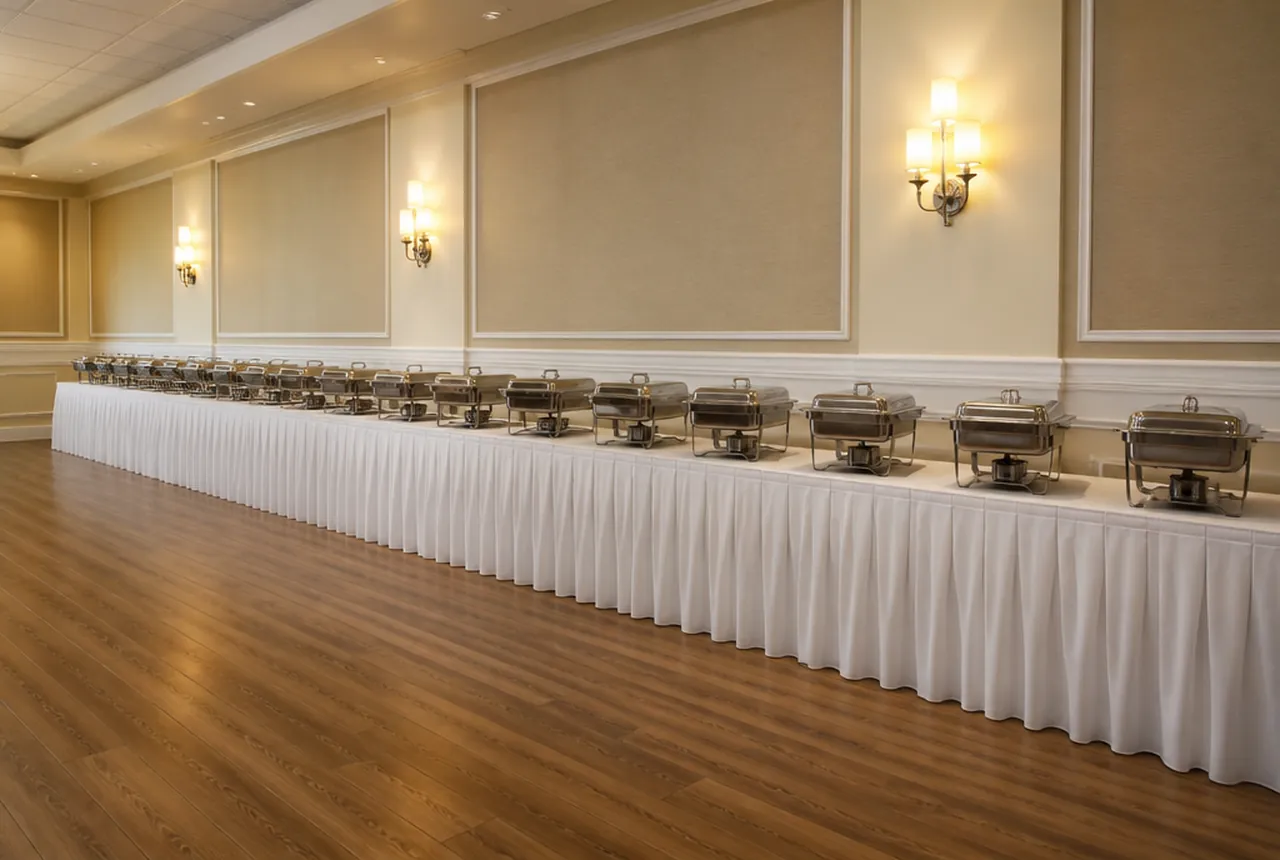

A station against a wall still needs space for its operator, open doors, waste handling, and replenishment. A bar has a serving side and an approach area. A buffet drawing needs the guest queue and return journey, not just the table rectangle.
Walk each route with the team using the actual equipment. Note where a server must wait for a guest to leave a chair, where a cart turns, and where two tasks compete for the same opening. Use the side-station checklist to record those conflicts.

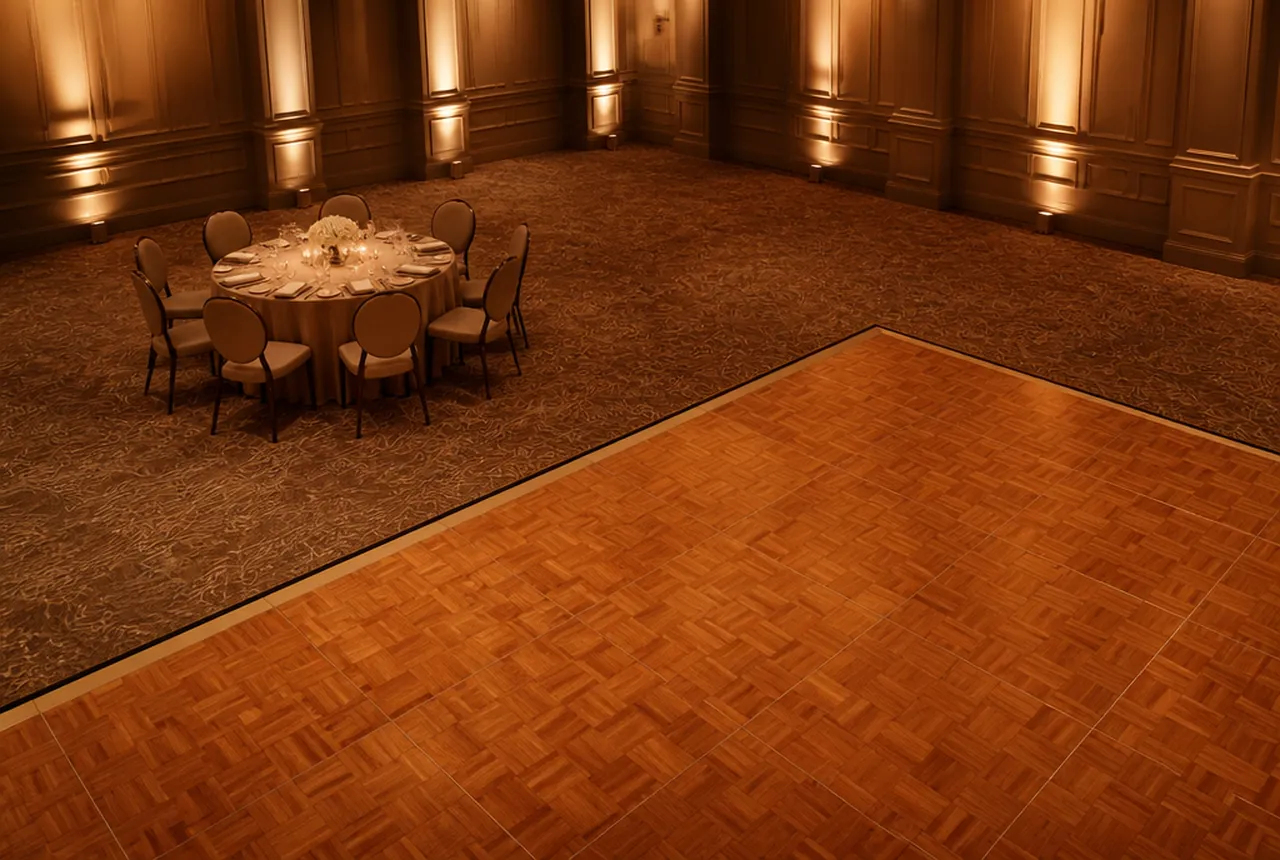

At a stage or dance floor, measure to the full active boundary established by the event plan. Furniture that clears the static platform outline may still interfere with its stairs or the movement around it.
Measure rows differently from dining groups

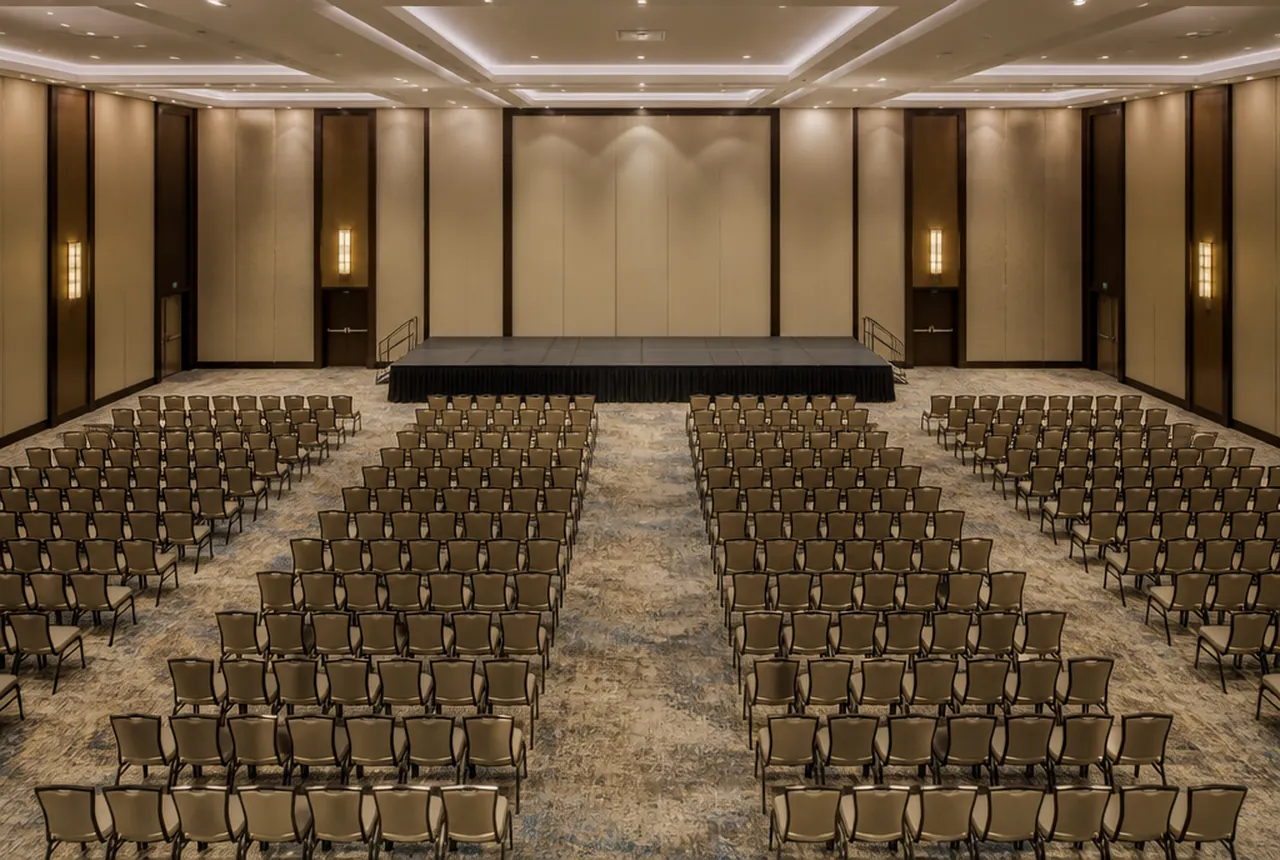

For theater rows, record row pitch and the actual clear gap between the front and rear chair envelopes. Seat depth and back angle can change that gap even when the row markers remain in the same place.

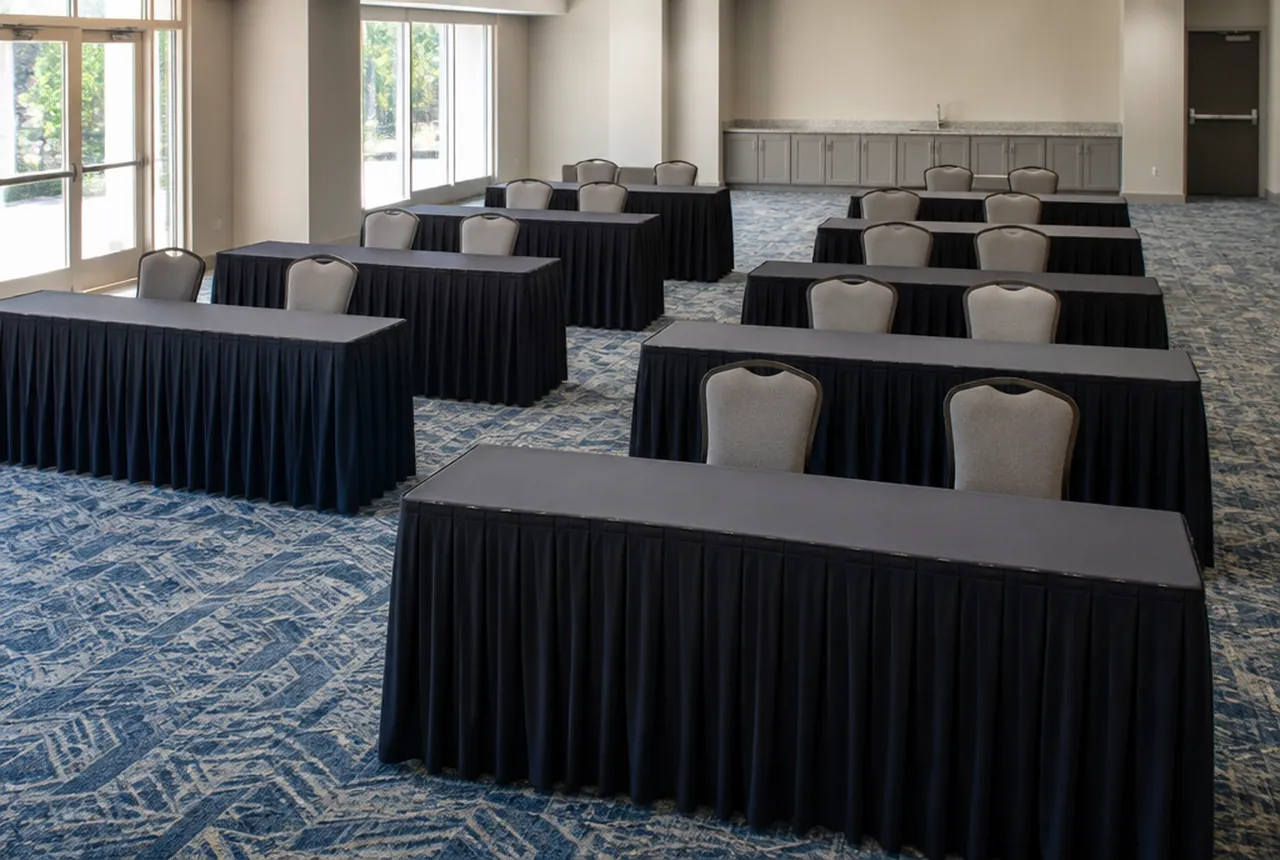

For classroom seating, include tabletop depth, occupied chair projection, and whatever rear passage the reviewed arrangement requires. Check the table support at each seat. Ask about any required chair linking or arrangement rules for the exact venue and use; do not infer them from the chair's appearance.
The banquet room planner is useful for comparing furniture positions. Its 12-inch allowance outside table edges and spacing presets are planning assumptions. Replace them with actual measurements before relying on the drawing for procurement.
Turn the measurements into a chair decision
Compare candidates from the chair catalog using the same table and test positions. Record the sample's actual chair dimensions. If one creates a conflict, identify whether the chair, table placement, or event configuration must change. Do not silently reduce a required route to preserve a desired chair count.
Attach the dimensioned event floor plan, sample photos, chair measurements, intended quantities, storage constraints, delivery location, and first-use date to a chair inquiry. State which dimensions are confirmed and which need supplier evidence. Keep the approved plan available to the setup team so measured clearances become repeatable placements.
