Most layout ideas fail for the same boring reason: they were chosen from a photograph rather than measured against a floor. A king's table looks extraordinary in a hall built for it and ridiculous in a hall that is forty feet wide. A perimeter set frees a beautiful centre and strands half the guest list against a wall. The idea was never the problem. The fit was.
So each of the twelve below carries the same three things: the guest range it genuinely suits, the clearance that decides whether it works, and the room shape that breaks it. Pick the concept that matches your room's proportions first and your client's mood board second, and the setup crew builds it once. If you want the geometry behind these shapes rather than the concepts themselves, the companion piece is banquet table layouts, diagrammed.

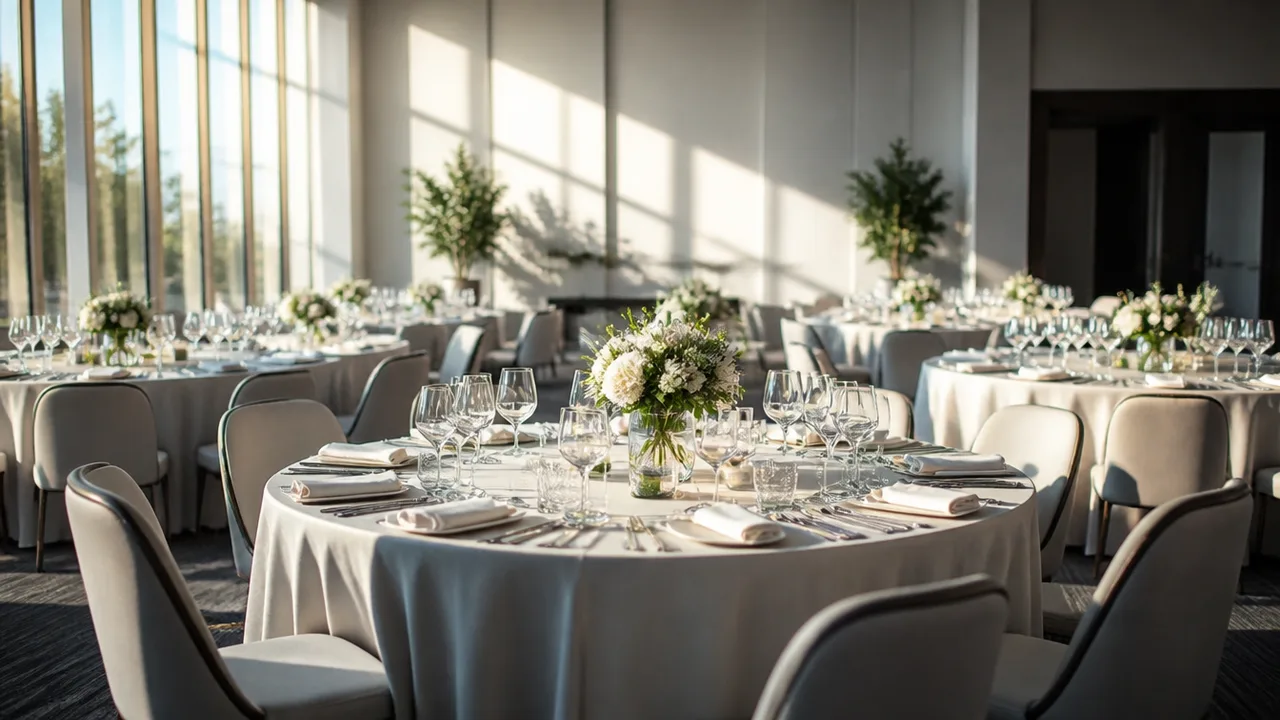

The numbers behind all twelve
Three figures decide whether any of these ideas survive contact with a real hall. Cover width is the run of table edge one guest needs, and 24 inches is the standard working figure on rectangular tables. Table-edge-to-table-edge clearance is the gap between adjacent tables, and 60 inches is what lets two guests sit back to back with a server passing between their chairs. The accessible route is the non-negotiable one: under the 2010 ADA Standards for Accessible Design it needs at least 36 inches of clear width, and it has to connect entrances, accessible seats, restrooms and exits.
Capacity itself is not yours to choose. Occupant load comes from local fire code, generally by way of the International Building Code or NFPA 101, and it is governed by your exits rather than your table plan. Every guest range below is a planning estimate for choosing a concept, not a legal maximum. Confirm the real number with the venue and the authority having jurisdiction before you promise anyone a headcount.

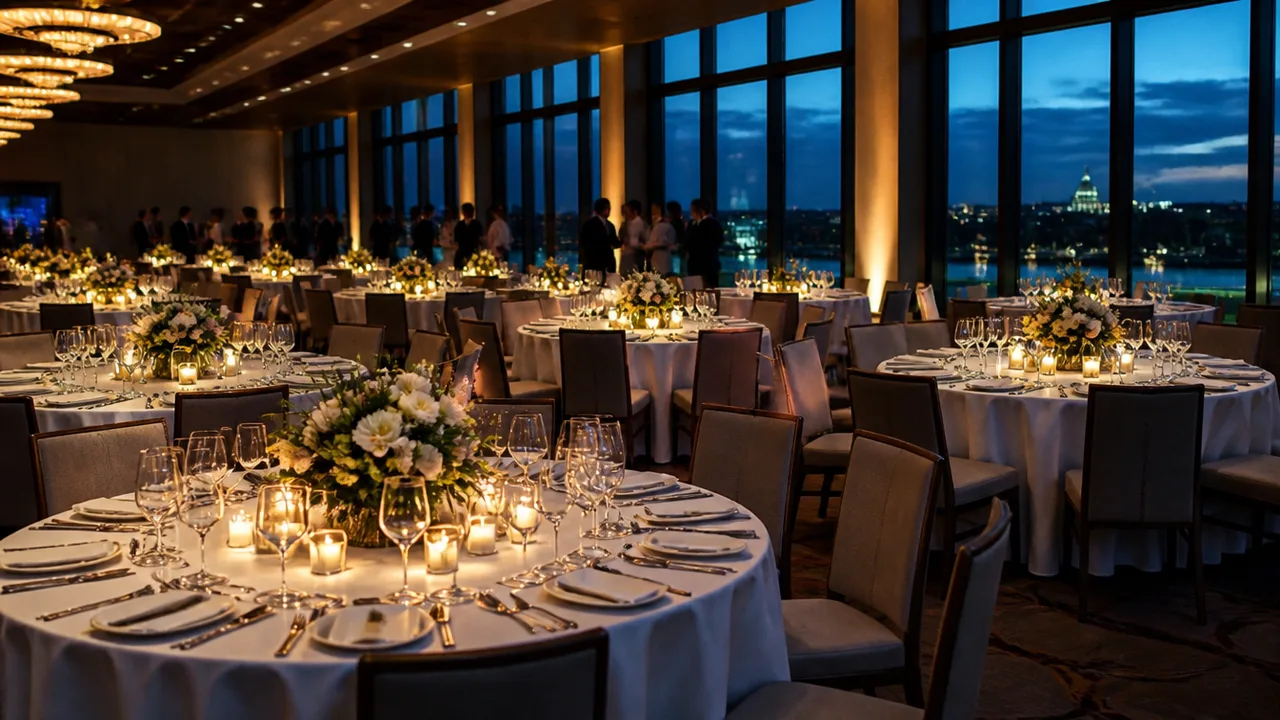

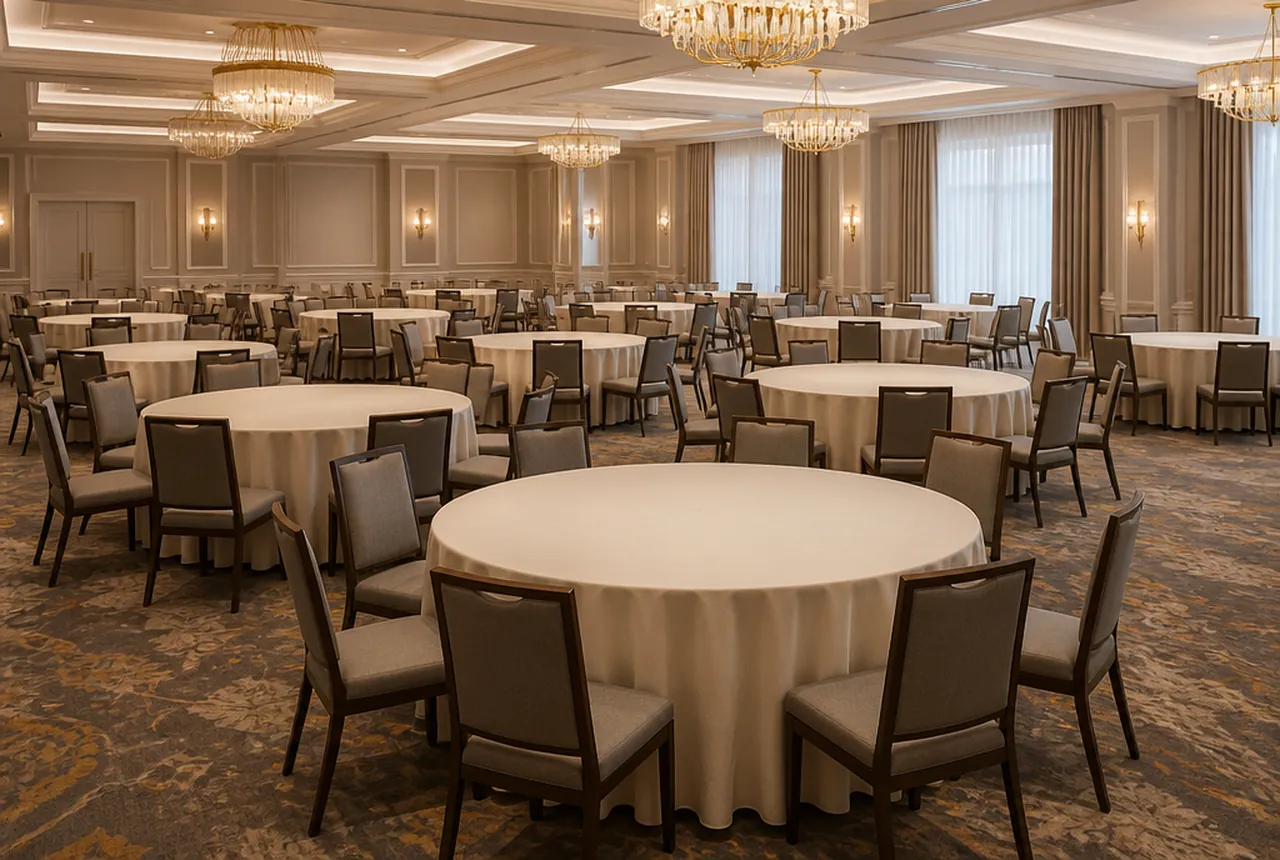

1. All 60-inch rounds, classic grid
Suits 60 to 250 guests. The default for a reason: identical tables mean identical service timing and a seating chart you can renumber in minutes. Nothing about the plan is bespoke, so a table added at the last minute drops into the grid without redrawing anything, and the kitchen can time courses off one number instead of three.
Plan roughly 60 inches between table edges so a chair can pull out and a server can still pass behind it. At eight guests per table this reads generous; at ten it reads busy but works, and that flexibility is the grid's real asset. It fails in long narrow rooms, where circle geometry wastes floor along the walls, and it fails whenever there is a program, because about a third of every table has its back to the stage. The seat counts by diameter are in guests per round table.

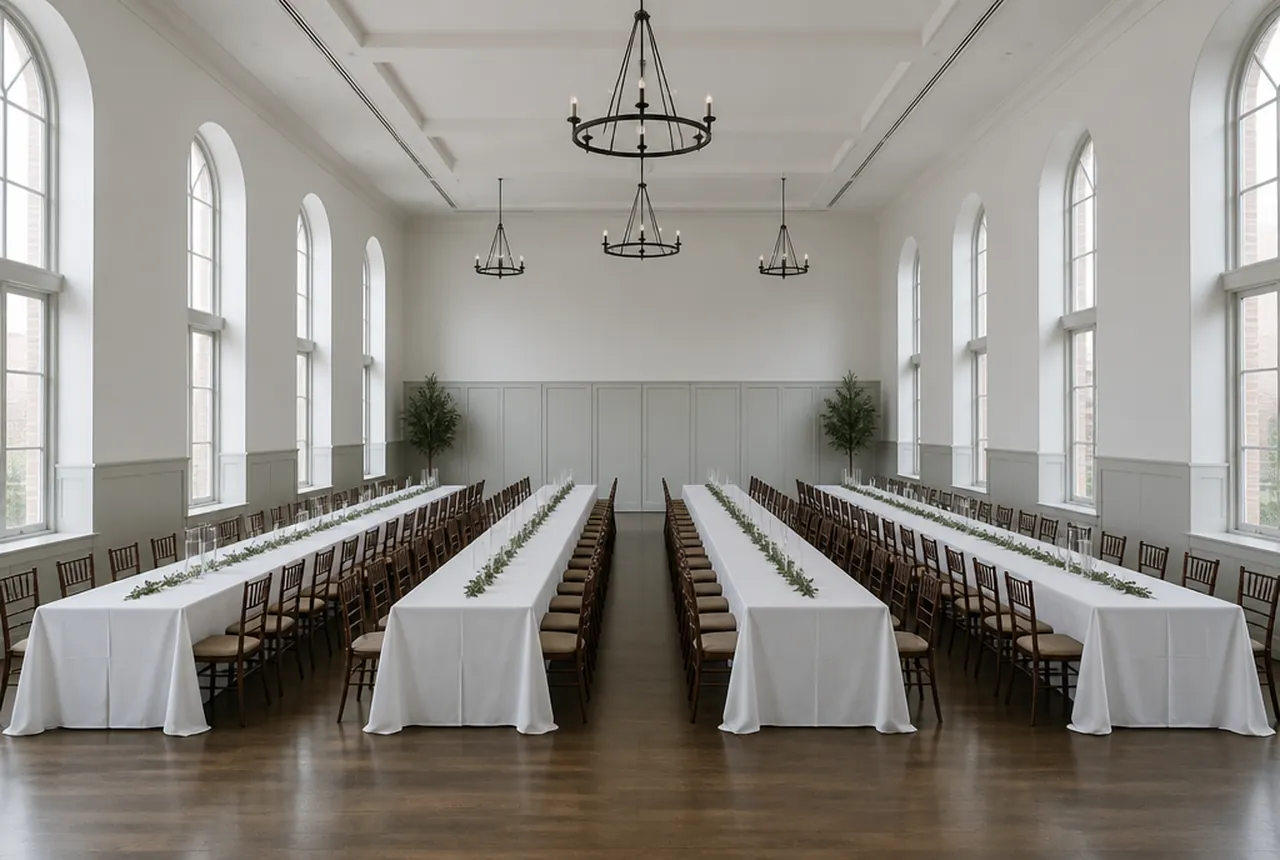

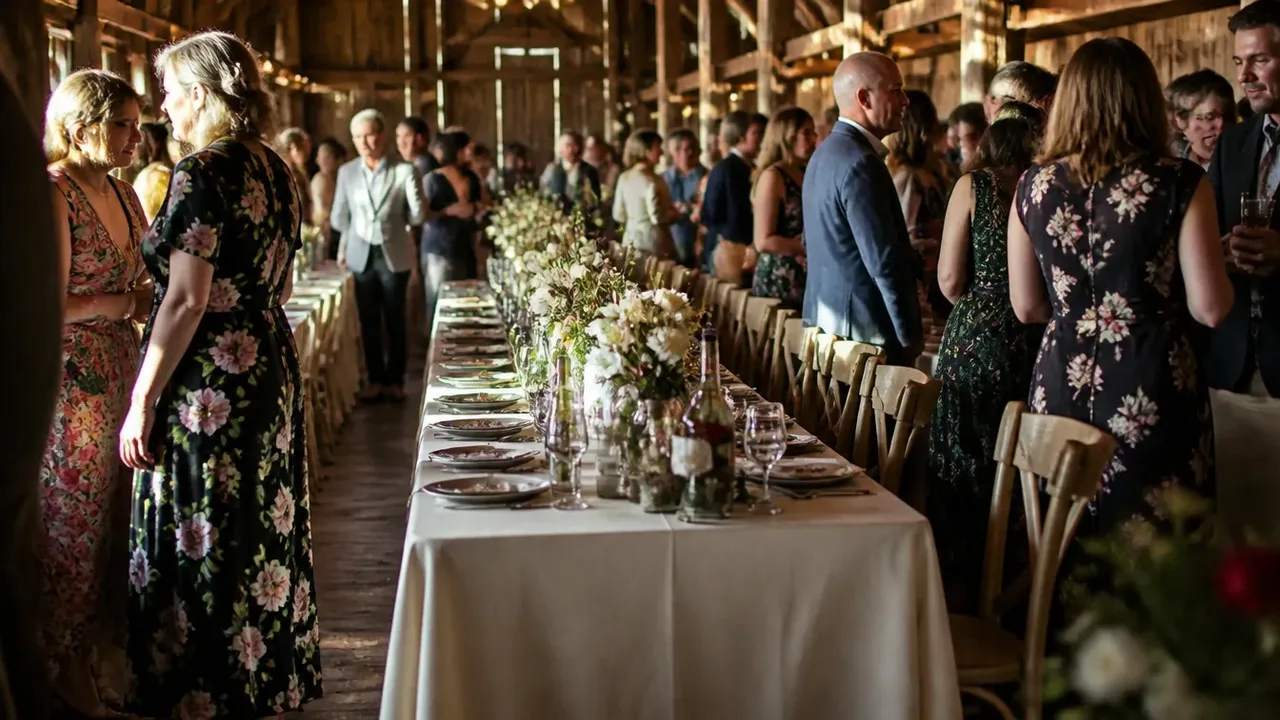

2. All long banquet tables, parallel runs
Suits 40 to 200 guests in a room longer than it is wide. Long tables seat more people per square foot than rounds and read modern, but they cut sightlines and force guests to talk in one direction. At 24 inches per cover an 8-foot table gives four per side, so a run of five seats forty plus whatever you cap the ends with.
Runs should stop short of the walls so servers can work the ends, and each run needs its own clear aisle behind the chairs on both sides rather than one shared squeeze between two runs. The failure is conversational rather than spatial: across 30 to 40 inches of table you can talk to the person opposite and the two beside you, and that is the whole of it, so a long run is a chain of small tables sharing linen. The trade against rounds is worked through in rectangular vs round banquet tables.

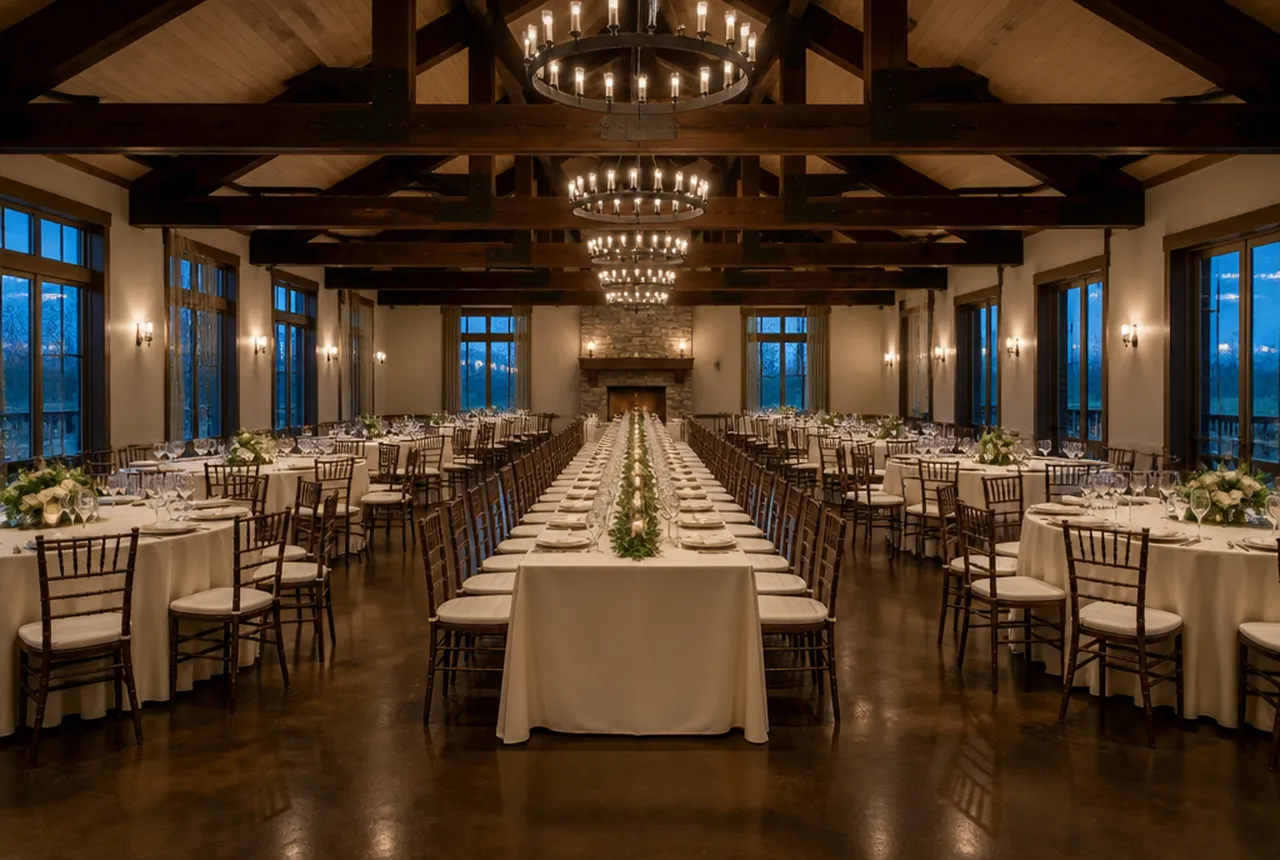

3. Mixed rounds and long tables
Suits 80 to 200 guests. The compromise layout: long tables for the visual spine, rounds to absorb the odd-sized groups a seating chart always produces. Every guest list contains a party of five and a party of eleven, and a pure grid of tens makes those groups somebody's problem. A mixed plan makes them a table.
Keep the linen, the chair and the centrepiece height identical across both table types so the mix reads intentional rather than improvised. Aisle discipline matters more here than in a pure grid, because two different table depths meeting at an aisle produce a gap that pinches at one end, and the pinch is always where a server has to turn a trolley. Draw the clearances to the tightest point, not the average.

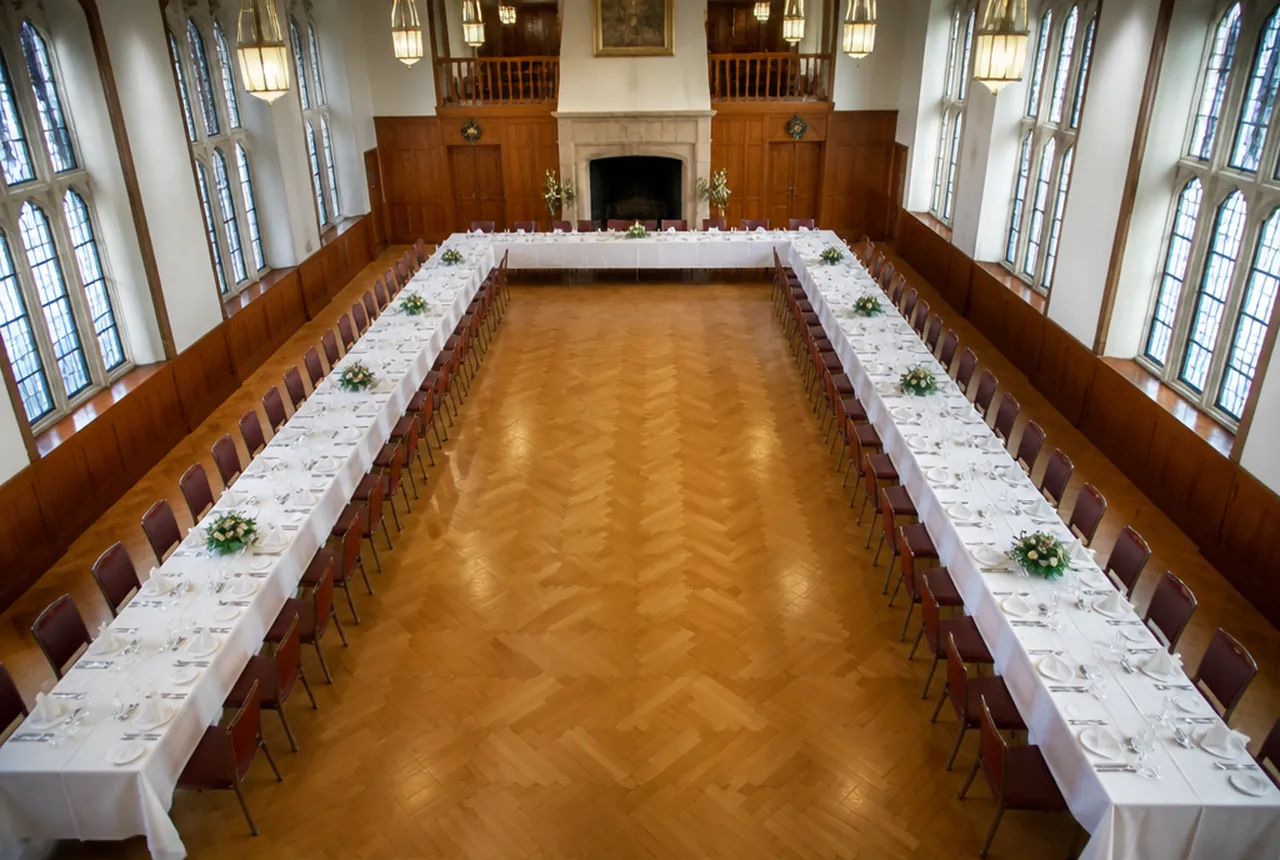

4. Horseshoe around an open centre
Suits 40 to 140 guests. Puts every guest facing inward with one open floor doing double duty as dance space and presentation space. You never build a separate dance floor and then wonder where to put it, because the hole in the middle of the seating is the floor.
It costs you seats compared with a grid, since chairs sit on the outside edge only and the whole centre is unseatable. It works beautifully under 90 guests and falls apart much above 140, at which point the arms grow so long that a guest at one tip cannot see or hear anything happening at the other. Leave a genuine break in one run so latecomers and servers can reach the interior without climbing over a table.

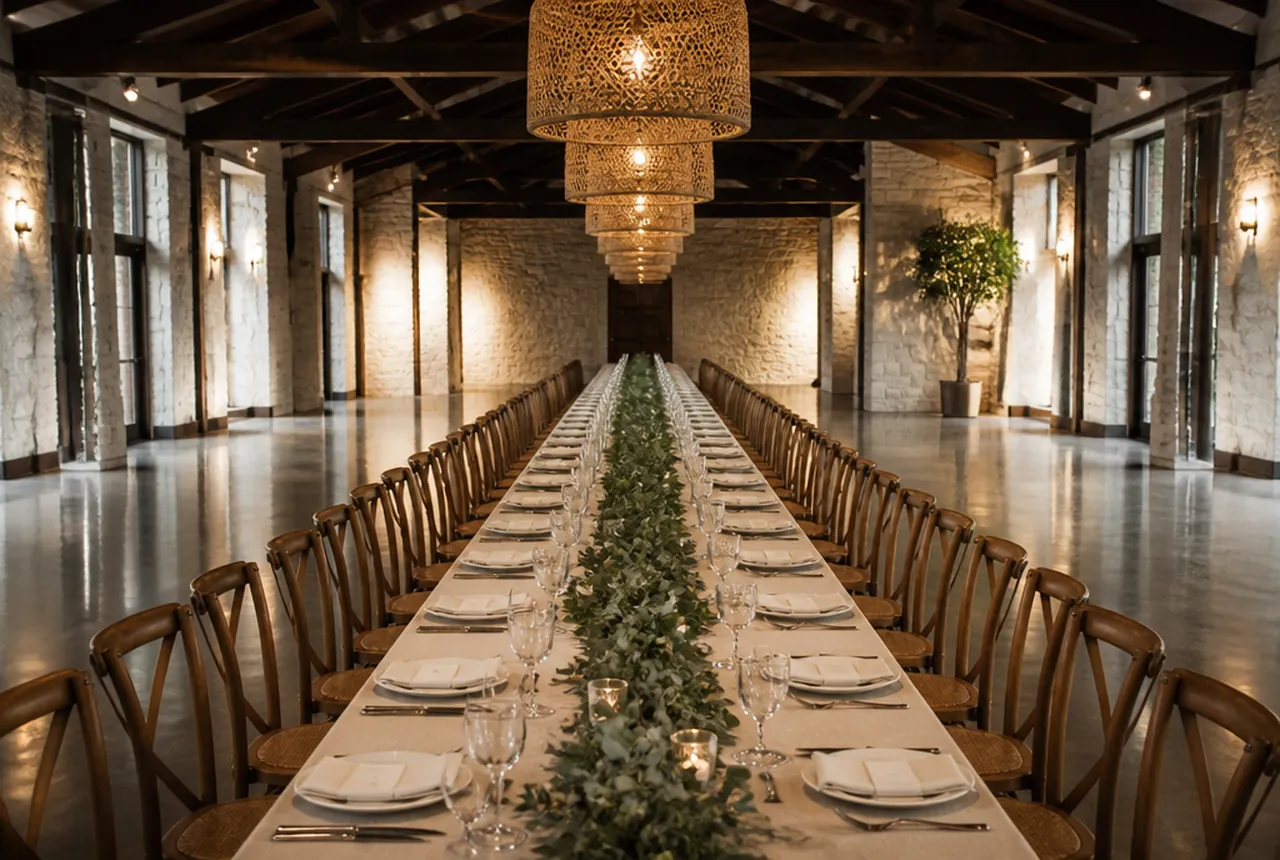

5. King's table down the spine
Suits 20 to 60 guests. One continuous table is the most photogenic layout in this list and the least flexible. Every added guest lengthens the room requirement rather than filling a gap, so a headcount that moves by six late in the week can move you out of the room entirely.
Confirm the run leaves a working aisle on both sides before you sell it. At 24 inches per cover a 40-guest king's table is 40 feet of table plus the aisles, which is a longer clear span than most function rooms actually give you once doors, columns and a service entrance are subtracted. The greenery down the centre is the other quiet constraint: a runner that tall blocks the cross-table sightline the shape exists for.

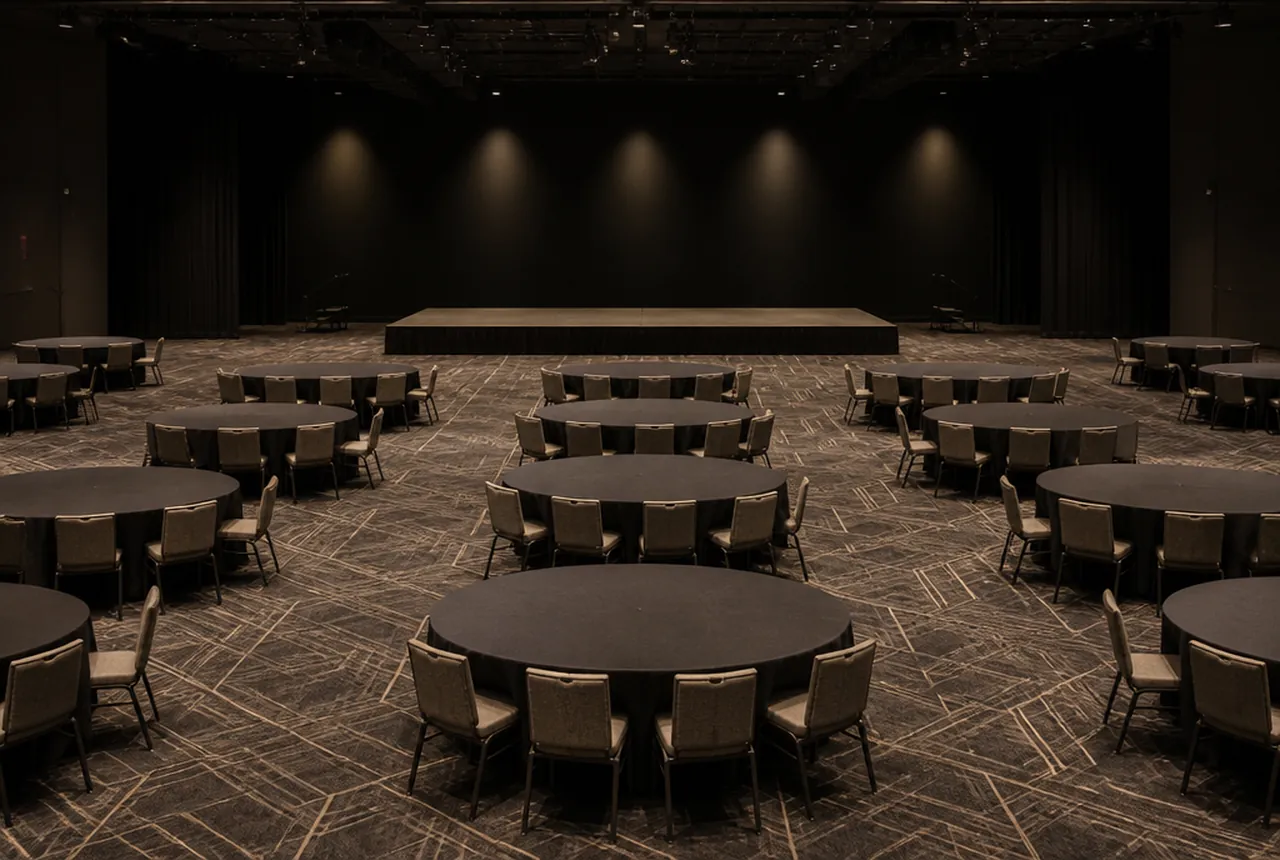

6. Cabaret crescents facing a stage
Suits 60 to 300 guests with a program. Seating only two thirds of each round leaves every guest with an unobstructed view forward. A 60-inch round drops from eight seats to about five and a 72-inch drops to six or seven, so budget 15 to 17 square feet per person rather than the 10 to 12 a full grid needs.
You lose roughly a third of your seat count and gain a room that can hold a dinner and a presentation without a reset, which is usually the cheaper trade for an awards night. Stagger the ranks so a back table looks into the gap between the two in front rather than over a head. The failure is a crew habit: every table set to the same compass direction instead of every table rotated to point at the stage turns a unified audience back into a scatter of dinner tables.

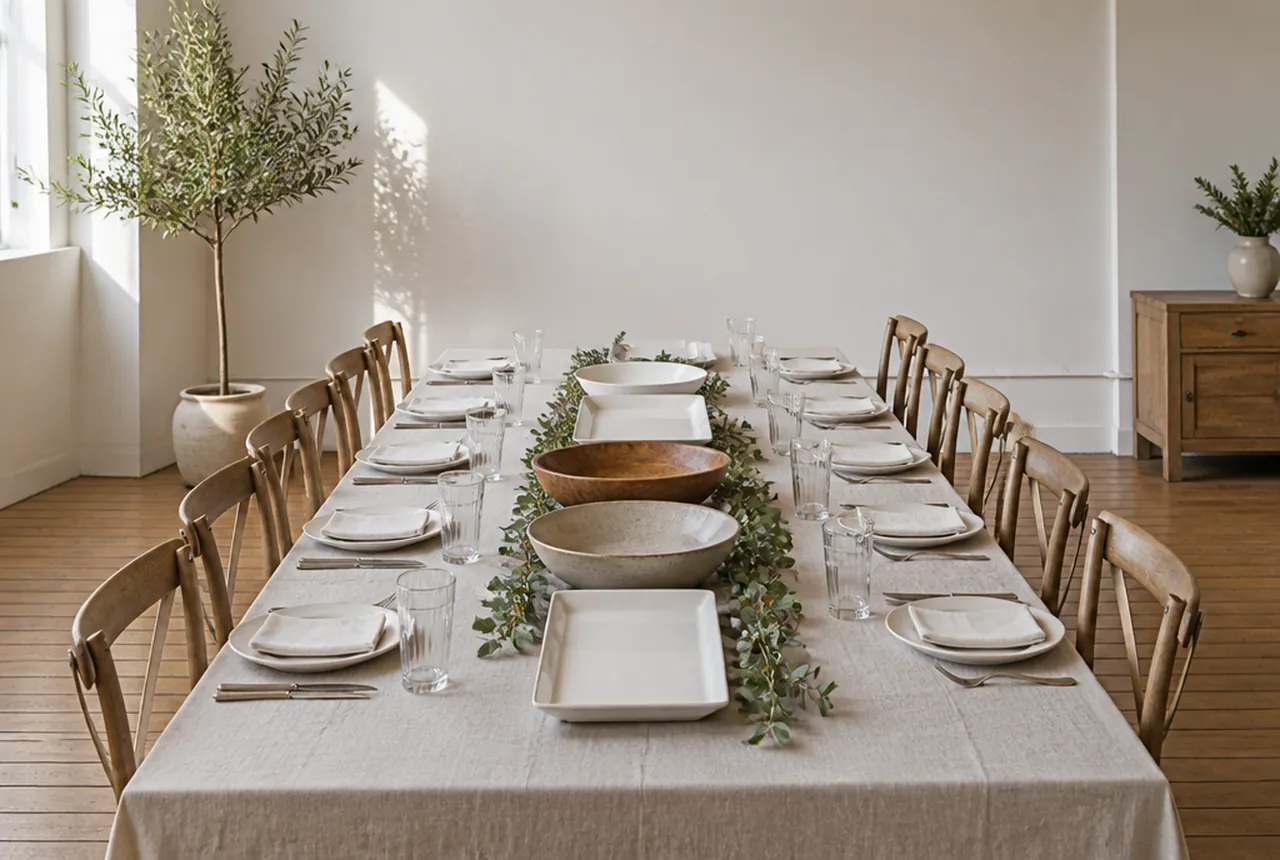

7. Family-style long tables
Suits 30 to 150 guests. Family style eats the table centre that would otherwise carry decor, so plan 24 inches of edge per cover and keep the centreline clear from end to end. Platters, boards and bowls need a permanent home, not a gap between candles, and a plan that treats the centre as decorative space will lose the argument at seven o'clock.
It also changes the service pattern from plate delivery to platter delivery, which needs wider aisles: a server carrying a hot platter in two hands cannot turn sideways to squeeze past a pulled-out chair. Add depth to the working aisles rather than the seating, and count on more trips per course, which pushes the staffing ratio up alongside the clearance.

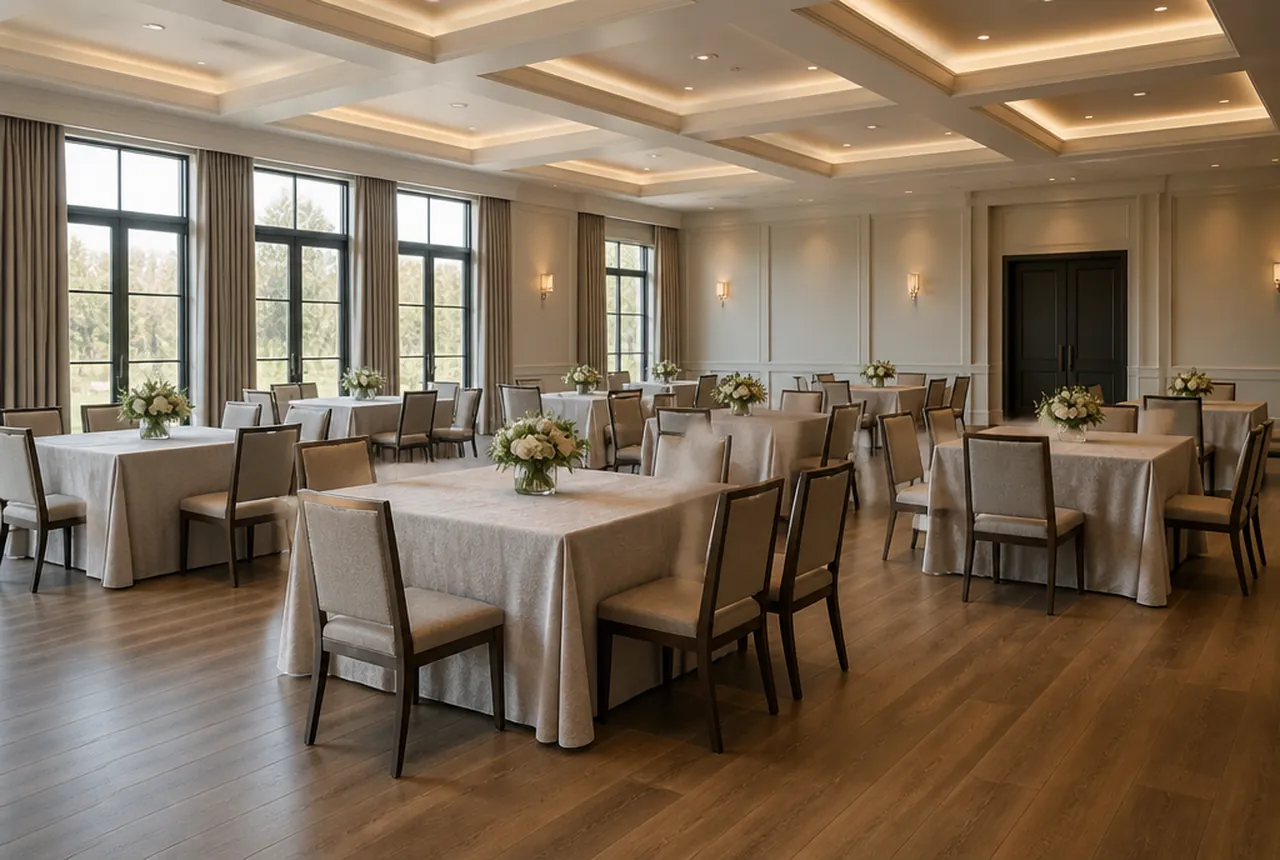

8. Square tables clustered
Suits 30 to 120 guests. Squares seat four to eight and cluster into larger shapes when a group grows, which makes them the most forgiving stock in a venue that takes bookings of wildly different sizes. Two 36-inch squares butted together make a rectangle for eight; four make a 6-foot square for twelve.
They are most useful in rooms with awkward proportions, where a round grid leaves dead corners that no table can occupy. A square footprint packs into an L-shaped room or a corner far more efficiently than a circle. The cost is that clustered tables need every seam to line up, so mismatched heights or a cloth that hangs differently on two tables reads immediately as a bodge.

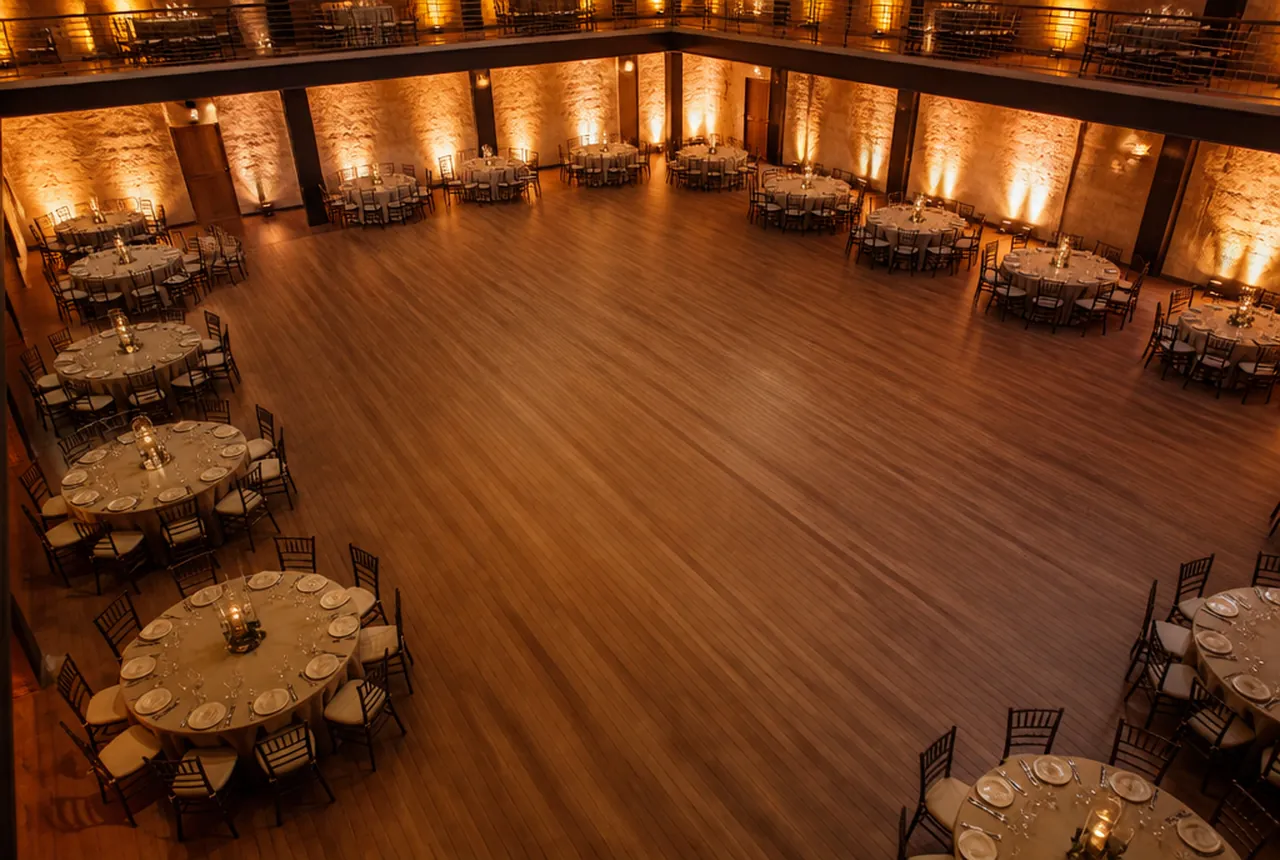

9. Perimeter seating with an open middle
Suits 80 to 250 guests at a standing event. Reverses the usual logic: the room's centre becomes the event and the tables become the edge. It is the right shape for receptions where standing is the default and seats are a rest stop rather than an assignment.
Perimeter tables lose a working side, because a table against a wall is served from one side only, and that lost side is exactly where a room's real capacity quietly leaks away. Keep a walking strip between the chair backs and the wall rather than pushing the chairs against it. Never let the perimeter run close a required exit route; the wall a planner most wants to line with tables is usually the one with a fire door in it.

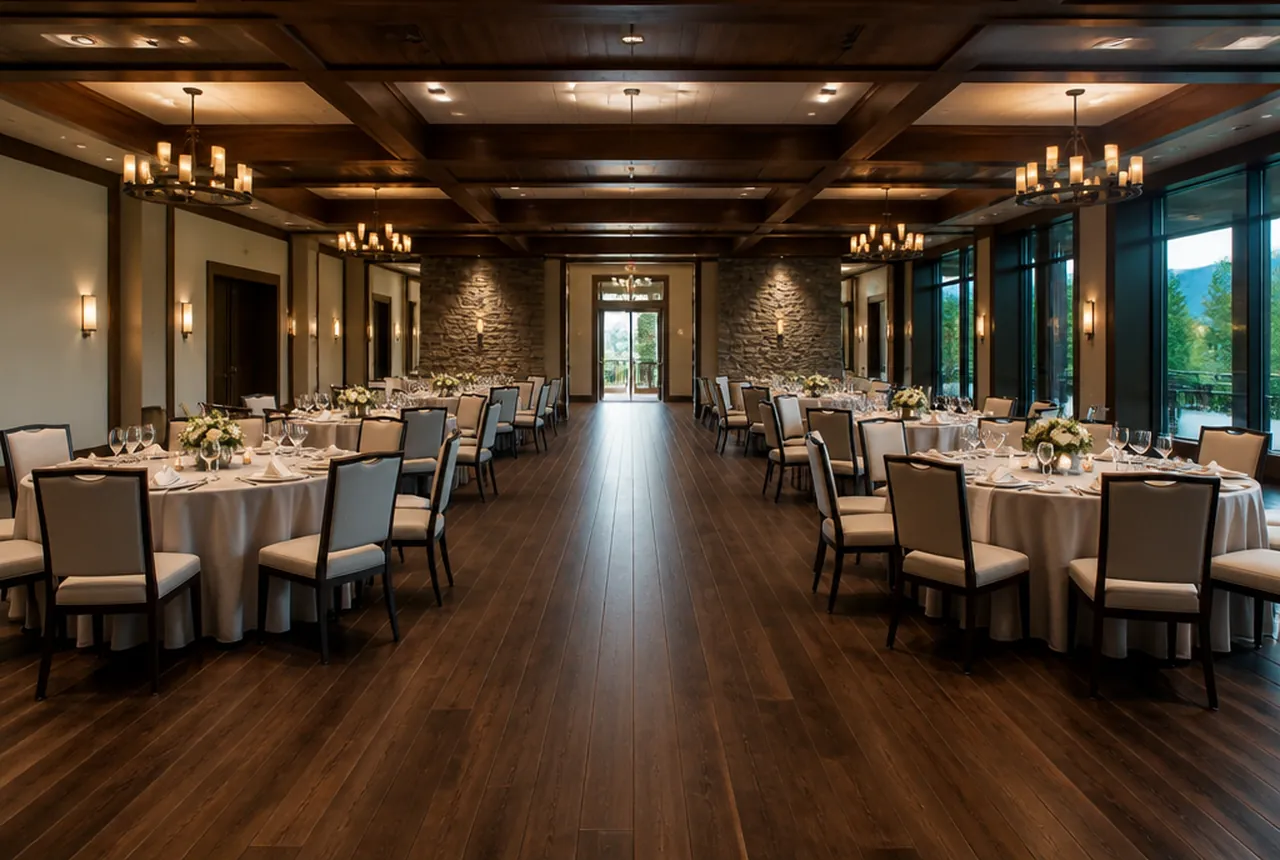

10. Two-room split with a service spine
Suits 150 to 400 guests. Committing one generous corridor as a service spine buys faster courses and fewer collisions than shaving every aisle equally. Most plans distribute the pain: every aisle ends up at the minimum, so every route is passable and none is quick. A spine concentrates the clearance where the trolleys actually run.
It costs you one or two tables and returns that in service speed, which is the trade to put in front of a client who wants two more covers. Run the spine to the back-of-house door in a straight line, keep it clear of the dance floor and the buffet queue, and mark it on the floor so the crew does not creep a table into it during setup. Above about 200 guests, plan two spines rather than one wider one.

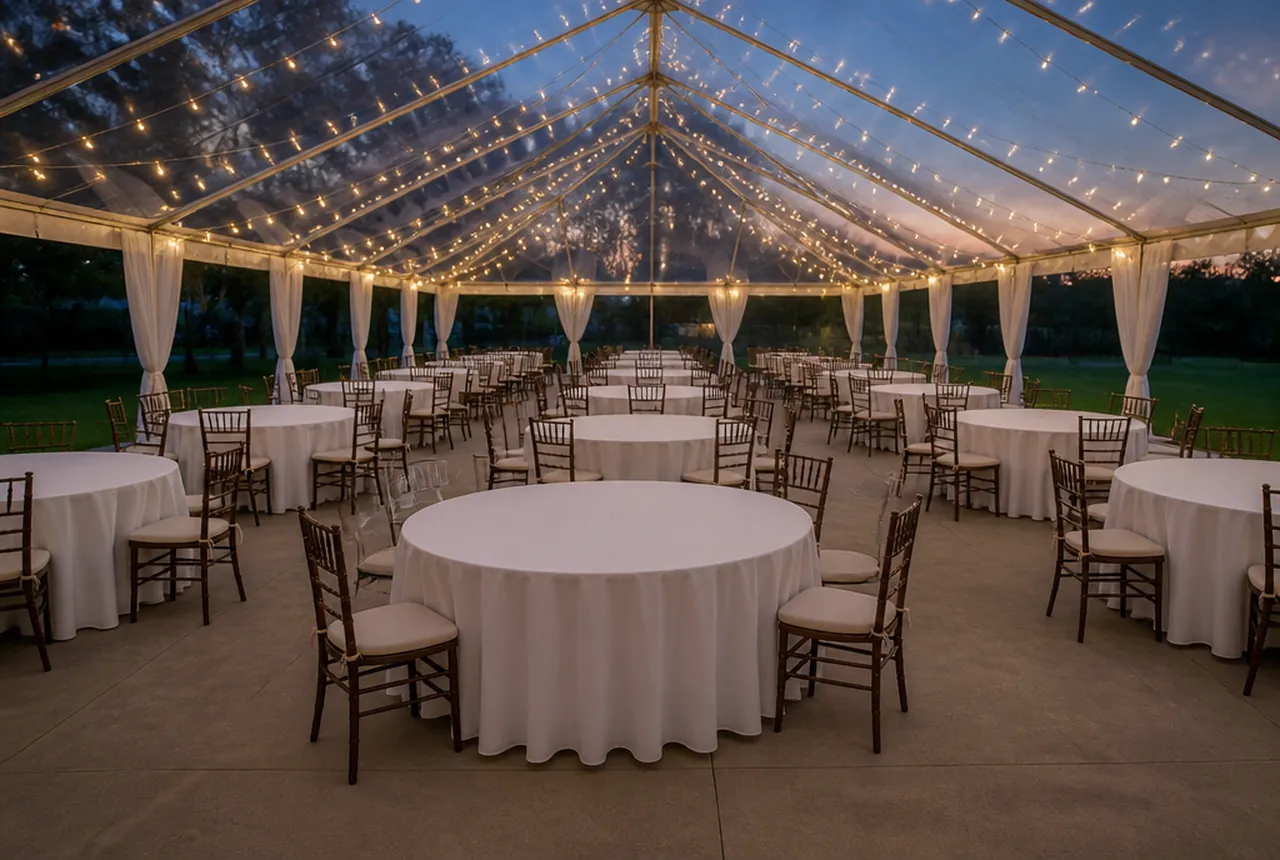

11. Tented lawn with the same grid
Suits 60 to 250 guests. A tent is a rectangle with no columns, which makes the grid easier than any indoor room of the same size. There is nothing to plan around and no structural surprise in the middle of the floor.
The catch is that the tent legs and guy points define your true usable rectangle, so draw to the legs, not the fabric. Usable seating also stops where the canopy drops, which means the perimeter strip under the eave is aisle whether you planned it that way or not. Ground conditions govern accessibility: an accessible route needs a firm, stable and slip-resistant surface, and grass or gravel usually means matting rather than an apology on the night.

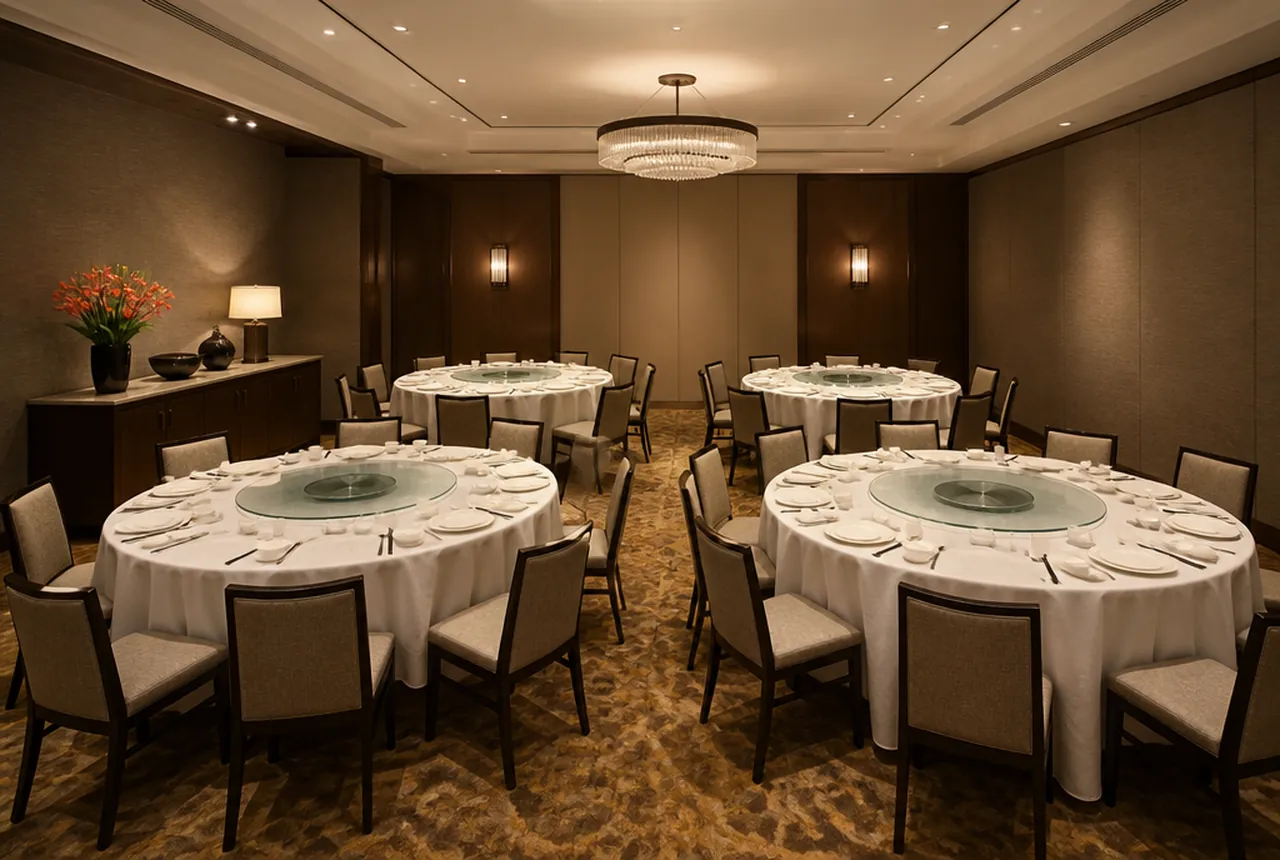

12. Small room, tight grid done well
Suits 24 to 40 guests. Small rooms fail on circulation, not on seat count. The tables will always fit; what will not fit is a queue, a service route and a pulled-out chair occupying the same three feet of floor at the same moment.
Give the buffet a wall with clearance on the approach side, and let the tables take the tighter spacing instead. That is the right order of sacrifice in a compact room: guests tolerate a snug table far better than they tolerate a jam at the food. Keep one route from the door to the far side genuinely clear at 36 inches or more, and check it with a chair pulled out rather than with everything pushed neatly in.
Choosing among the twelve
Start with the room's proportions, not the mood board. A room that is longer than it is wide wants long runs, a spine or a king's table; a squarish room wants a grid, a horseshoe or a centred open floor. Rooms with awkward corners want squares. Once the shape matches the proportion, apply the square-foot allowance for that style to the floor you actually have left after the stage, dance floor, bars and stations come out, and take the smaller of that estimate and the legal occupant load.
Then check the three clearances one at a time, at the tightest point rather than the average: 60 inches between table edges, 36 inches minimum on every accessible route, and aisles that reach at least two exits without passing through a buffet queue. When the concept, the envelope and the clearances all agree, the idea survives the floor. The full setup-style comparison is in banquet room setup styles, and the planning method that produces the drawing is in the event floor plan guide.
